In stock

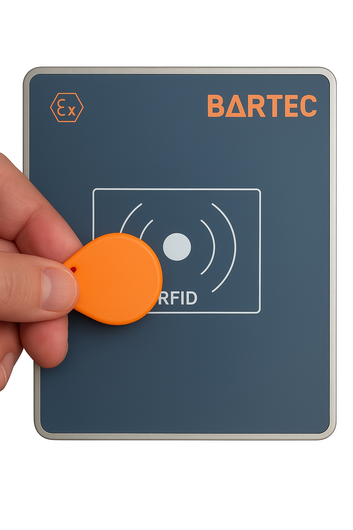

MODEX RFID Enclosure
IIoT and Connectivity, RFIDFor zone 1/21
Benefits
- Transparent plastic enclosure for RF installations
- GMP-compliant installation behind a BARTEC RF front panel cover
- Installation in a housing with Bartec window for zone 1/21
Current portfolio RFID series in MODEX-housing:
- Siemens / SIMATIC RF1000
- PHG ADMITTO / EBL
- rf IDEAS / WAVE ID Plus Mini
- HID Global / OMNIKEY
- Further RFID installations on request
-
Description
Marking
II 2G Ex db IIC T4 Gb
Ex db IIC T4 Gb
Ambient Temperature
The ambient temperature is depending on the built in RFID-Series: see datasheet
Certification
-
ATEX
- DE
- EN
-
IECEx
- EN
-
INMETRO
- EN
The MODEX RFID enclosure for zone 1 , type: 07-7322-93C1****, is suitable for non-Ex communication devices such as RFID modules.
Various RFID systems are used in industry. The MODEX housing makes it possible to easily bring the most common RFID modules into the hazardous area. Due to the plastic housing, radio signals are not interfered with and so
the standard RFID systems can also be used in Hazardous Areas.
Technical Data
| Material | High-quality thermoplastic |
|---|---|
| Installation | Flameproof snap-on housing for TH35 |
| Weight | 0.3 kg |
| Ambient temperature | see data sheet |
| Input voltage / Input voltage range | see data sheet |
| Power consumption | see data sheet |
