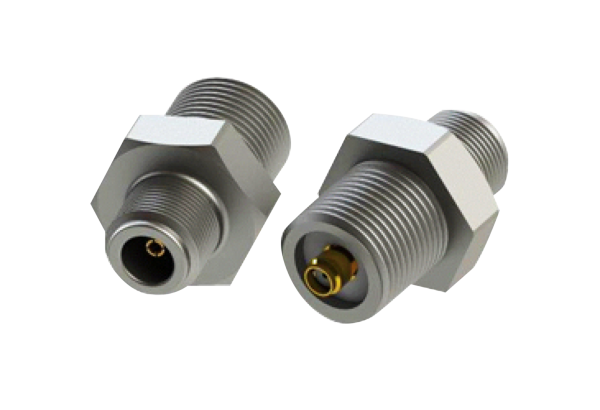

ISOLATE-CT Connector Transit
Antennas, IIoT and ConnectivityBenefits
- II 2 GD Ex d IIC Gb
- Ex tb IIIC Db
- I M2 Ex d I Mb
- Class I,II,III, Division 1, Groups A-G
- Class I, Zone 1 Ex d IIC Gb
- Class I, Zone 21 Ex tb IIIC Db
-
Description
Marking
Ex II 2 GD Ex d IIC Gb, Ex tb IIIC Db
Ex I M2 Ex d I Mb
cMETus Class I, II, III Division 1 Groups A-G
Class I Zone I Ex d IIC Gb
Class I Zone 21 Ex tb IIIC Db
The iSOLATE-CT is an explosion proof connector transit, designed for use with the iSOLATE501 range of galvanic RF isolators to enable quick and simple wireless deployments in hazardous areas.
When fitted to an explosion proof enclosure containing the Extronics iSOLATE501, the RF ports of standard wireless radio device are protected by the intrinsic safety concept meaning you can simple live connect, disconnect, and hot swap your antennas as necessary. The iSOLATE-CT’s IP66 industry standard ‘Type N’ RF connector eliminates the need to make off cable glands; installation is made simpler and less costly.
Technical Data
| Material | 3016L Stainless Steel |
|---|---|
| Weight | 83g (2.9oz) |
| Dimensions | 45 x 30 x 20 mm (1.77 x 1.18 x 0.79 in) |
