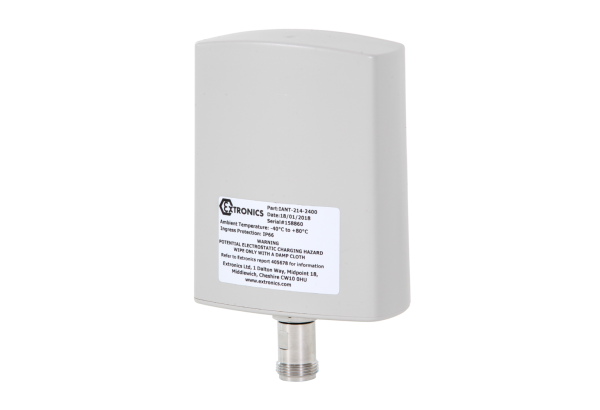

IANT214

Directional Wi-Fi Antenna

Benefits

Directional coverage
2.4GHz and 5GHz options
Vertically polarised or dual slant
IP67 and rugged
Suitable for Groups I, II, III and -40°C to +80°C

Description

Marking

N/A

Ambient Temperature

-40°C to +80°C

The iANT214 is a vertically polarised directional antenna that is ideal for point-to-point links. Part of Extronics’ iANT2xx range of standard antennas, the iANT214 is optimised for use in WLAN installations in the 2.4GHz/5.8GHz spectrum for IEEE802.11 wireless networks or 2.4GHz/5.8GHz wireless mesh Ethernet networks.

Technical Data

Frequency band	iANT214-2400: 2400-2485 MHz iANT214-2400D: 2400-2485 MHz iANT214-5000: 5150-5975 MHz
Polarisation	iANT214-2400 & 5000: Vertical iANT214-2400D: +/- 45° slant (2×2 MIMO)
Weight	110g
Dimensions	H101 x W80 x D35 mm
