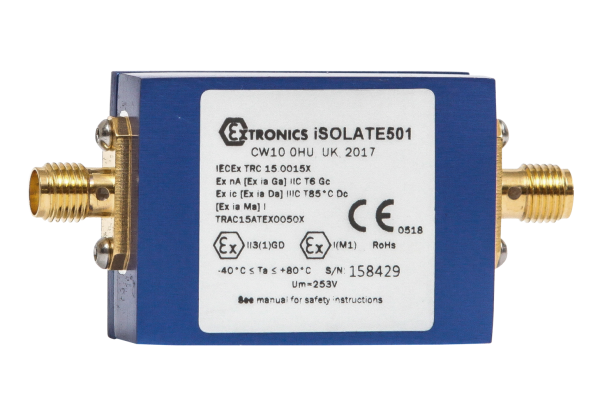

iSOLATE501
Antennas, IIoT and ConnectivityBenefits
- II 3(1) G D Ex nA[Ex ia Ga]IIC T6 Gc, Ex ic [Ex ia Da] IIIC T85°C Dc
- I (M1) [Ex ia Ma] I
- cMETus Class I, II, Div 2, Class III Div 1 & 2, Groups A-G.
- Class 1, Zone 0, Group IIC T4
- -40°C ≤ Ta ≤ +80°C
-
Description
Marking
Ex II 3 (1) G D Ex nA [Ex ia Ga] IIC T6 Gc, Ex ic [Ex ia Da] IIIC T85°C Dc
Ex I (M1) [Ex ia Ma] I
cMETus Class I, II Div 2, Class III Div 1 & 2 Groups A-G. Class I, Zone 0, Group IIC T4. Associated equipment Class I, II, III Div 1, Groups A-G.
Ambient Temperature
-40°C ≤ Ta ≤ +80°C
The iSOLATE501 is an ATEX, IECEx, and MET approved RF galvanic isolator for use in Zones 0, 1, 2/22 and mining applications. It is the next generation of Extronics groundbreaking technology, designed to improve further the performance of the industry proven iSOLATE500.
The iSOLATE501 provides galvanic isolation to give protection against dangerous transients. That means you can choose from a wider variety of non-certified antennas that meet the requirements for simple apparatus.
Technical Data
| Material | Anodised aluminium |
|---|---|
| Weight | Approximately 38g (1.34oz) |
| Dimensions | 57 x 28 x 13 mm (2.24 x 1.1 x 0.52 in) |
