In stock

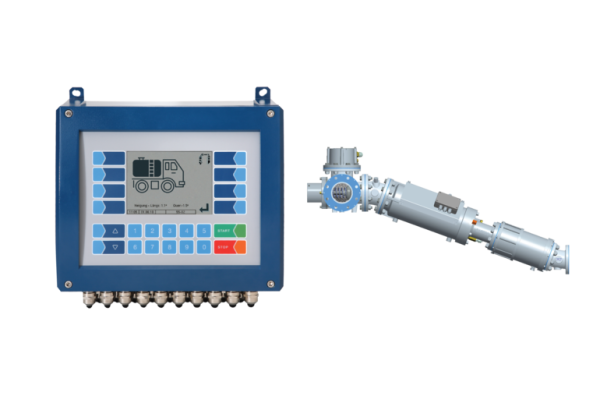

PETRO 3003 Tiger
PETRO - Petroleum products, Road TransportSmall Quantity Delivery
Benefits
- Easy to operate
- Calibrated accurate measurement technology
- No need for gas separator device or specific fine filter (complete solution)
- simplified delivery of different products with no need for pumping back and no mixing
- Prevention of foul play and Tamper-proof
- Simplified operation and logistics
- Automated loading and unloading operation
- Reduced installation and maintenance costs
- High ROI
-
Description
Marking ATEX certified IECEx certified W&M/MID certified Ambient Temperature Operating Temperature: -20°C to +50°C (-4°F to 122°F)
Storage Temperature: -20°C to +50°C (-4°F to 122°F)
The unique and patented PETRO 3003 TIGER system works without any gas separator device or specific fine filter. It allows you to use up to three pumped wet hoses and an empty hose with only one integrated metering system, “TIGER EX”.
Technical Data
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Metrology-approved turbine wheel transducer with level and pressure sensor |
| Measurand: | Volume (l) |
| Measurement range: | Freely selectable in the flow range of the transducer |
| Type of liquid: | Liquids in the viscosity range < 20mPas at 20°C
(Heating oil, Gasoil, Diesel, Biodiesel, etc.) |
| Flow rate: | 30-300 l/min | 80-800 l/min | 100-1,000 l/min |
| Accuracy class: | Better than 0.5 |
| Total Weight: | Starting at 39 kg |
Documents
Brochure
- DE,EN
Service Manual
- DE,EN
Configuration Manual
- DE,EN
Quick Guide
- BG, CZ, DE, EE, EN, FR, HR, HU, IT, NL, PL, RO, SL, SR
