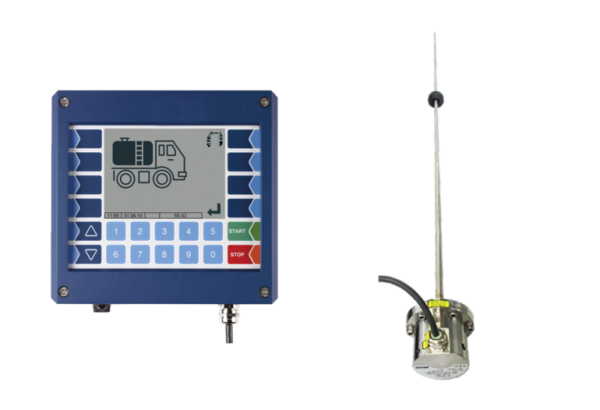

PETRO 3003 VOLUTANK
PETRO - Petroleum products, Road TransportPetrol Station Delivery
Benefits
- Easy to operate
- Calibrated accurate measurement technology
- EN 15208 – Highest level of empty detection
- Prevention of foul play and Tamper-proof
- Full visibility of the entire cycle of fuel transport
- Increased flow rate
- Simultaneous delivery out of several compartments
- Automated loading and unloading operation
- Reduced installation and maintenance costs
- High ROI
-
Description
Marking ATEX certified IECEx certified W&M/MID certified Ambient Temperature Operating Temperature: -20°C to +50°C (-4°F to 122°F) Certification W&M/MID: DE, EN, NL
Storage Temperature: -20°C to +50°C (-4°F to 122°F)
Based on experience and a genuine motivation to drive digitalization, BARTEC invented the electronic dipstick to create an efficient, flexible, and innovative solution on the one hand, and on the other hand, so that our customers achieve maximum safety, regulatory compliance, and outstanding performance in their transport operations. This enables our customers to reach new levels of success.
Today, PETRO 3003 Volutank is the most accurate technology for measuring fuel. It measures continuously the fuel volume day and night, at loading, on the road, during parking position, and at delivery.
The PETRO 3003 Volutank system can easily be extended with:
- Sealed parcel delivery “SPDS” (EN 15208)
- Over-fill prevention
- Cross-over prevention “SAFE” (EN 14116)
- Opticontrol
- Office communication and connection via GPRS
- etc.
Technical Data
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Metrology-approved level measuring instrument with float |
| Measurand: | Volume (in connection with a filling table of the measuring tank) |
| Measurement range: | Range of dipstick to 3000 mm |
| Type of liquid: | Liquids in the viscosity range < 20mPas at 20°C
(Gasoline, Diesel, Heating oil, Jet fuel, Biodiesel, etc.) |
| Flow rate: | Maximum possible flow (e.g. 1,000 l/min or more per compartment) |
| Accuracy class: | Better than 0.1 (field-proven) |
| Total Weight: | Starting at 51 kg |
