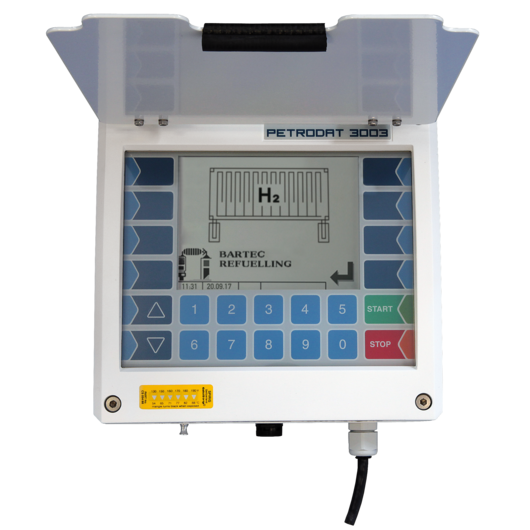

HY COMP Hydrogen Fiscal Metering
H.Y.W.A.Y. - Hydrogen and its derivatives, Road TransportBenefits
- Calibrated and approved quantity measuring system
- Usable for both trailer/MEGC as well as stationary (on-site trailer filling)
- Automated dispensing process (valve & section control)
- Temprature peak detection and composite protection
- Automated data transfer and office integration
- Data evaluation with Bartec office software
- HY COMP insures a calibrated and approved delivery
-
Description
Marking W&M certified Ambient Temperature Operating Temperature: -20°C to +50°C (-4°F to 122°F)
ATEX [IIC] certified
Storage Temperature: -20°C to +50°C (-4°F to 122°F)
HY COMP is a calibrated and approved measuring system for the distribution of gaseous compressed hydrogen. It combines measurement technology, product monitoring, and data transmission into a unified system for MEGC / trailer use. Maximum attention is paid to safe trailer handling to protect the driver, trailer and its composites. Additionally, it insures retraceability of all executed transactions in combination with GPS coordinates. Calibrated hydrogen discharge quantities are automatically transfered to the office for invoicing. Furthermore, HY COMP supports tour and order management.
Technical Data
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Mass meter |
| Measurand: | Mass (kg) |
| Type of product: | Compressed gaseous (low / medium / high pressure) |
| Flow rate: | Dependent on application |
| Accuracy class: | better than 2.5 |
| Total Weight: | starting at 29 kg |
Brochure
BARTEC HY COMP BROCHURE EN
- EN
