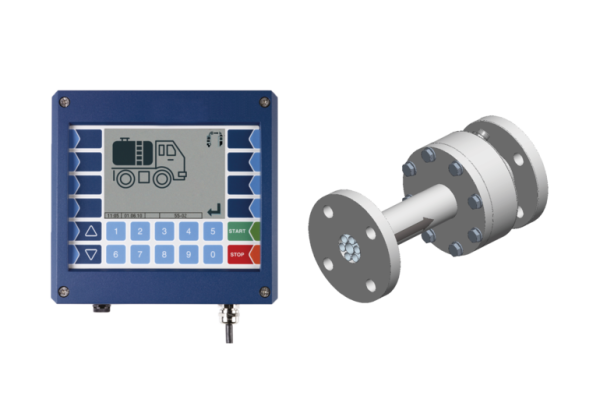

PETRO 3003 LPG
PETRO - Petroleum products, Road TransportLPG Delivery
Benefits
- Easy to operate
- Full automized valve control
- Temperature and pressure control
- On-site printout of delivery note & invoice
- Configurable layout of printouts
- Full office integration & cloud
- Independent calibration by external W&M official
- Online diagnostics and remote service
- Dry-run protection of the pump
- Measuring of loaded quantity
- High ROI
-
Description
Marking ATEX certified IECEx certified W&M/MID certified Ambient Temperature Operating Temperature: -20°C to +50°C (-4°F to 122°F) Certification MID: DE
Storage Temperature: -20°C to +50°C (-4°F to 122°F)
MID approved measurement system for road tankers that deliver liquefied petroleum gas (propane, butane, or ratios of both). PETRO 3003 LPG combines measurement, monitoring, and data transfer into one coherent system. Together with an integrated customizable invoice solution, they form a highly efficient OnTruck operation for the distribution of LPG. The highest attention is paid to easy driver handling, ensuring a fast and safe LPG delivery, and supporting the daily distribution process in the best possible way.
Technical Data
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Metrology-approved measurement turbine technology | Mass meter |
| Measurand: | Volume (l) or Mass (kg) |
| Measurement range: | Freely selectable in the flow range of the transducer |
| Type of liquid: | Under pressure liquified gases |
| Flow rate: | 40-1,000 l/min |
| Accuracy class: | Better than 1.0 |
| Total Weight: | Starting at 33 kg |
Documents
Brochure
- DE, EN, IT
Operating Manual
- DE, EN
Service Manual
- DE
Configuration Manual
- DE, EN
Quick Guide
- BG, CZ, DE, EE, EN,FR, HR, HU, IT, NL, PL, RO, SL, SR
