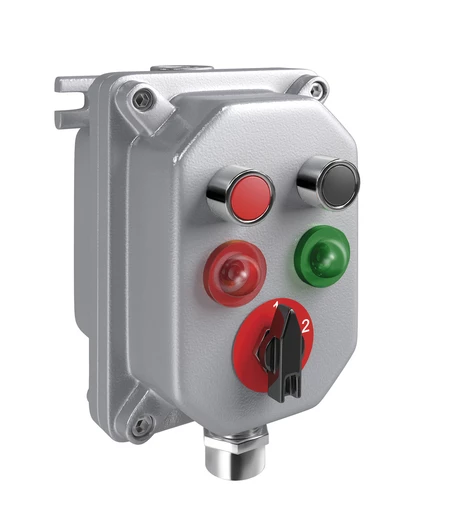

EFG Control Station
Control Stations and Control Panels, Electrical SystemsEx d multiple control station for zone 1/2 – 21/22
Benefits
- Aluminium
- IP66
- Equipped with different types of operators
- For command and signaling of auxiliary circuits
-
Description
Marking
ATEX:
(Ex II 2 G) Ex b IIB T6/T5 Gb
(Ex II 2 D) Ex tb IIIC T85°C/T100°C Db IP66
IECEx:
Ex d IIB T6 or T5 Gb
Ex tb IIIC T85°C or T100°C Db IP66
Ambient Temperature
-60 °C to +60 °C (standard)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
INMETRO
- PT
Flameproof Ex d control stations BARTEC EFG. series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
The control stations of this series are used for command and signaling of auxiliary circuits.
Technical Data
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Aluminium alloy |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Voltage | see data sheet |
| Current | see data sheet |
Manuals/Operating Instructions/Guides
-
ATEX – Instruction for use
- EN
- IT
-
IECEx – Instruction for use
- EN
- PL
-
INMETRO – Instruction for use
- EN
- PL
Declarations
-
ATEX – Declaration of conformity
- EN
- IT
-
IECEx – Declaration of conformity
- EN
- IT
Data Sheets
Data sheet – Flameproof enclosures EJB
