PETRO 3003 Aircraft Refueling 4.0
PETRO - Petroleum products, Road TransportPetrol Station Delivery
Benefits
- Easy to operate
- Calibrated accurate measurement technology
- EN 15208 – Highest level of empty detection
- Prevention of foul play and Tamper-proof
- Full visibility of the entire cycle of fuel transport
- Increased flow rate
- Simultaneous delivery out of several compartments
- Automated loading and unloading operation
- Reduced installation and maintenance costs
- High ROI
-
Description
Marking ATEX certified IECEx certified W&M/MID certified Ambient Temperature Operating Temperature: -20°C to +50°C (-4°F to 122°F) Certification W&M/MID
Storage Temperature: -20°C to +50°C (-4°F to 122°F)
DE

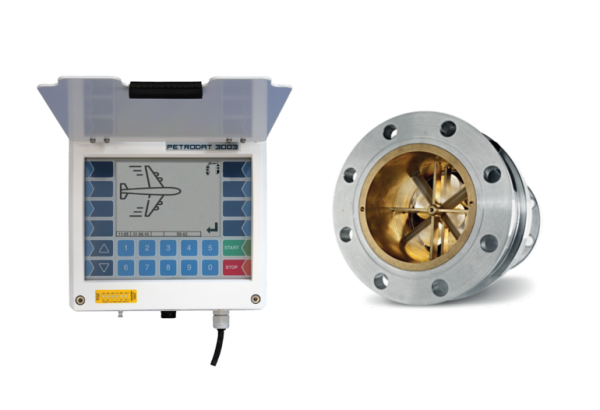

PETRO 3003 Aircraft Refueling is a combination of three features measurement, data transfer, and OnBoard computer into one coherent system. Together, they form a highly efficient OnTruck operation for aircraft refuelers and dispensers in hazardous areas. MID approved all-in-one dispatch solution that will guarantee the ultimate on-site support.
Technical Data
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Metrology-approved measuring turbine technology |
| Measurand: | Volume (l) |
| Measurement range: | Freely selectable in the flow range of the transducer. |
| Type of liquid: | Liquids in the viscosity range < 20mPas at 20°C
(Jet Fuel, Avgas, Jet B, Biokerosene, Sustainable Aviation Fuel, etc.) |
| Flow rate: | 100-1,000 l/min | 200-2,000 l/min | 400-4,000 l/min |
| Accuracy class: | Better than 0.5 |
| Total Weight: | Starting at 20 kg |
Manuals/Operating Instructions/Guides
Operating Manual
- DE, EN, FR, IT
Service Manual
- DE, EN, FR
Configuration Manual
- DE, EN, FR, IT
Quick Guide
- DE, EN, PL, TR
Brochure
- EN
