ComEx Global Illuminated Push Button Module
ComEx Global Illuminated Push Button Module
ComEx Global (UL), Electrical Components, Operating and Indicator devicesBenefits
- Easy installation
- Certified for Zone 1
- Intensive illumination by colored LED
-
Description
Marking
ATEX/UKEX:
Ex II 2G Ex db eb IIC Gb
Ex I M2 Ex db eb I Mb
IECEx:
Ex db eb IIC Gb
Ex db eb I Mb
CEC (UL mark):
Ex db eb IIC Gb
Class I, Division 2, Groups A, B, C, D
NEC (UL mark):
Class I, Zone 1, AEx db eb IIC Gb
Class I, Division 2, Groups A, B, C, D
Ambient Temperature
Service temperature (Ts):
-55 °C to +85 °C
(-67 °F to +185 °F)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
UKCA
- EN
-
UL
- EN
-
INMETRO
- PT
-
ECASEx
- EN
-
PESO
- ZZ
-
CCC
- EN-CN
-
EAC
- ZZ

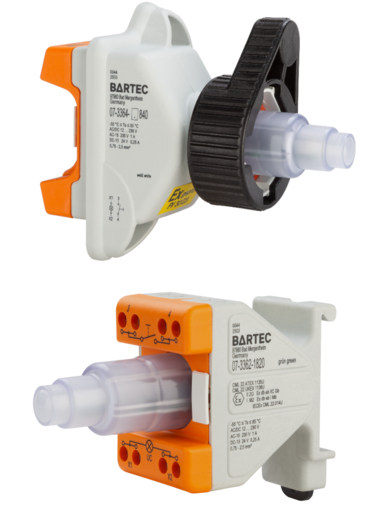

The ComEx illuminated push button module is used in almost all hazardous (potentially explosive) areas where machine functions are activated by pressing a button and the corresponding status is to be indicated visually.
The ComEx illuminated push button module is flexible and available in different colours (red, green, yellow, white and blue). The connecting cable is connected to the ComEx illuminated push button module via screw terminals. The ComEx illuminated push button module offer the option of simple and fast mounting on a rail- or a panel mounted installation per direct mounting to the ComEx actuator. The ComEx illuminated push button modules are developed and certified for globally market.
Technical Data
| Degree of protection | IP20 acc. to EN 60529 |
|---|---|
| Rated insulation voltage | 300 V |
| Working voltage | 250 V |
| Rated voltage | AC/DC 12…230 V |
| Material | thermoplastic |
| Connection | 0.75 mm² – 2.5 mm²/18 AWG – 12 AWG |
| Mounting | Panelmounted (locked to signal device actuators 07-3400-T* by bayonet catch)Railmounted (latched on mounting rail NS 35 x 7.5) |
| Lamp | LED (red, green, yellow, white, blue) |
| Electrical life | > 105 running hours |
| Mechanical life | > 105 switching cycles |
| Weight | Panelmounted approx. 110 g Railmounted approx. 110 g |
CAD data
-
07-3362-* illuminated push button module for railmounted
- DWG
- STP
-
07-3364-* illuminated push button module for panelmounted
- DWG
- STP
Manuals/Operating Instructions/Guides
- DE
- EN
- PT
Declarations
-
EU-Declaration of Conformity – 01-3300-7C0010
- DE
- EN
- FR
-
UK-Declaration of Conformity – 01-3300-7CU010
- EN
