In stock

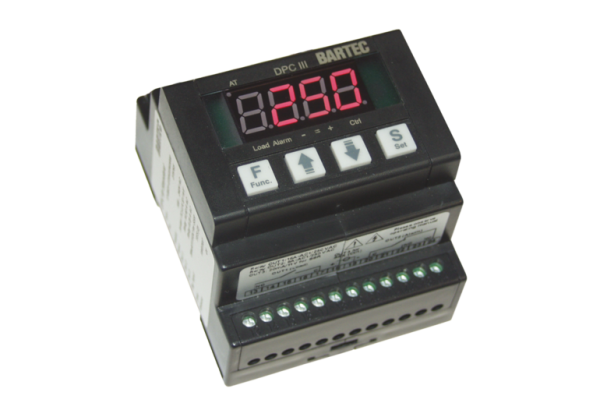

DPC III
Central, Control, Monitoring and Sensing, Single ChannelDigital Programmable Temperature Control Device
Benefits
- Optimised for trace heating applications
- Wide-range voltage input
- Sensor monitoring
- two-point controller PID controller
- Easy setup
- Load relay/alarm relay/logic output for EMR
- RS 485 Modbus
-
Description
Ambient Temperature
Service temperature range
0 °C to +50 °C
The DPC III is a series of temperature controllers designed for heating applications. It features a digital controller that monitors measuring circuits for sensor failures, interruptions, and other issues to ensure reliability. It can be used as an ON/OFF or PID controller and has a wide-range voltage input for universal use.
| Controller | ON/OFF or PID |
|---|---|
| Sensor input Pt100, mV Standard signals Thermocouple J, K, S | |
| Electrical data | Voltage AC 100 to 240 V, AC/DC 24 V |
| Output 1: AC 250 VAC 16 A | |
| Output 2: AC 250VAC 8 A | |
| Output 3: DC 11V / 20 mA | |
| Mechanical data | Dimensions 70 mm x 84 mm x 60 mm |
| Installation snap-on housing for TH 35 DIN rail mounting |
Manuals/Operating Instructions/Guides
Operation and Installation Manual DPC III
- DE
- EN
- FR
Declarations
EU Declaration of Conformity
11-8821-7C0001_A
- DE
- EN
- FR
Data Sheets
