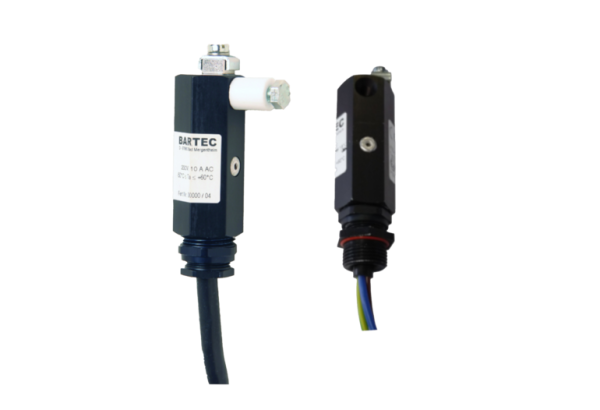

Kte-d Cable Thermostat
Ambient Sensing, Control, Monitoring and Sensing, LocalBenefits
- High switching current
- Wide operating temperature range
- Ready for connection
- Maintenance-free
-
Description
Marking Ex II 2G Ex db IIC T6
Ambient Temperature Operating temperaturerange: -60 °C to +180 °C
Certification
Ex II 2D Ex tb IIIC T80 °C
Ambient temperaturerange: -60 °C to +60 °C
The KTE-d is a highly reliable bimetallic thermostat designed for use in hazardous (potentially explosive) areas. It is integrated into a cable and commonly used to protect devices against frost, regulate temperatures of switch and control cabinets, transmitter protection boxes, and measuring equipment. The KTE-d can also be used to indicate excessively high or low temperatures or as an alarm contact. Its ability to conform to the required minimum temperatures ensures exceptional reliability, making it a valuable tool for a wide range of applications.
Technical Data
| Control range | 10 °C ON/18 °C OFF (+/-3 ° K) fix (mechanical) (others on request) | |
|---|---|---|
| Electrical data | Voltage: max. AC 250 V (others on request) | |
| Current: AC 10 A (Switching current) | ||
| Connection: Flexible cable EWKF 3 x 1.5 mm²; Ø 8.1 mm or single cores | ||
| Mechanical data | Material: black anodised aluminium, seawater proof | |
| Installation: M 6 internal thread / Through hole d =5 mm or M 20 connection thread | ||
