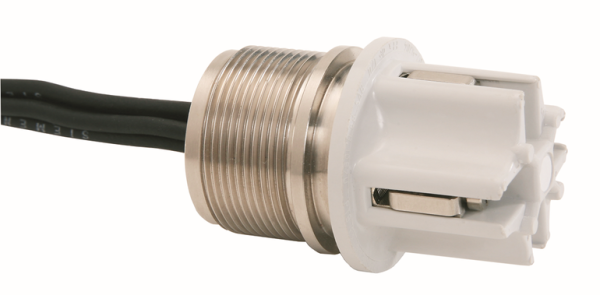

Line Bushings With Terminals For Zone 1
Line Bushings With Terminals For Zone 1
Electrical Components, Line Bushing, Line bushings and EntriesBenefits
- Space-saving construction as many single cores are gathered in one single sleeve thus requiring only one cable entry hole
- As all 6 cores are brought out, direct Y-/\- switching. Is also possible on the motor terminal board of Ex d motors
- Motor mains and thermoprotection cables can be exited in one common sleeve
- Numbered cores simplify connections and eliminate the usual “Ring out“ in larger control systems
- On the Ex d side, the cores are connected directly to the electrical load, intermediate terminals are no longer necessary
- Small dimensions allow a rated insulation voltage of up to 3 kV
- Blue cores for Ex i low power circuits
- Permanent heat-resistance of the cores up to +110 °C
-
Description
Marking ATEX: IECEx: Ambient Temperature Service temperature (Ts): Certification ATEX
Ex II 2G Ex db eb IIC Gb
Ex I M2 Ex db eb I Mb
Ex db eb IIC Gb
Ex db eb I Mb
-60 °C to +110 °C
(-76 °F to +230 °F)
depending on the design, terminals and lead
(temperature ranges apply to the “permanent installation“ of the leads)
DE
EN
IECEX
EN
CCC
ZZ
UKEX
EN
A line bushing is a component for the electrical connection between a flameproof “d“ enclosure and an increased safety “e“ terminal box. The bushing consists of a threaded or non-threaded metal sleeve encapsulating one or more cores providing a flameproof barrier. The lengths of these leads vary according to their applications. The depth of engagement of the threaded sleeves and the joint length of the cylindrical sleeve in the wall of the “d“ enclosure must correspond to the EN 60079-0 and EN 60079-1 standards. After installation the bushing must be protected against rotation and accidental loosening. Recommendations are given under “Accessories“. Our standard bushings come with threaded sleeves from M10 to M48 or with cylindrical sleeves. They are equipped with cores with a 0.2 to 95 mm2 csa. and approved for nominal voltages between 250 V and 3 000 V. See also table “Electrical data“.
For the connection of intrinsically safe circuits in the “d“ area with the terminal strip in the connection compartment we provide line bushings with blue cores for “i“ low power circuits.
Technical Data
| Dimensions | see data sheet |
|---|---|
| Voltage | Nominal voltage: 690 V/1 000 V |
| Current | see data sheet |
| Connection | Number of terminals: 4 or 6 (depending on the cross-section) Cross-section: 0.75 mm²/1.5 mm²/2.5 mm²/4 mm²/6 mm² Sleeve size: metric: M24 x 1.5 to M42 x 1.5 non-threaded: ∅ 22 mm to ∅ 36 mm Sleeve material: metal, bare, varnished or galvanised |
Declarations
EU-Declaration of Conformity – 01-9300-7C0001
- DE, EN, FR
UK-Declaration of Conformity 01-9300-7CU0001
- EN
Brochures
Flyer – Line bushings
- EN
Data Sheets
Data Sheet – Line bushings with terminals
