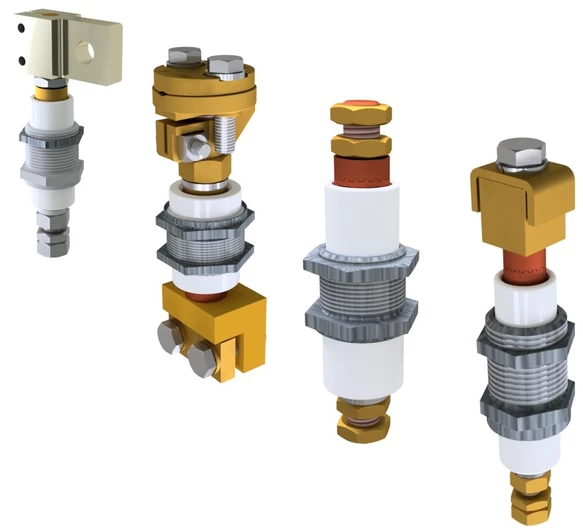

Conductor Bushings series TOS
Electrical Components, Line Bushing, Line bushings and EntriesFlameproof Enclosures and Increased Safety Solutions
Benefits
- Various connection combinations
- various rated voltage
-
Description
Marking ATEX: IECEx: Ambient Temperature Service temperature (Ts): Certification ATEX
Ex II 2G Ex db eb IIC Gb
Ex I M2 Ex db eb I Mb
Ex db eb IIC Gb
Ex db eb I Mb
-55 °C to +130°C
(-67°F to +266°F)
EN
IECEx
EN
The insulators of our flameproof conductor bushings are made from ceramic. They come with a removable bolt made out of copper or brass. The screw-in threads of the insulators are available from M16 to M42. The bolt diameter can be chosen with a variety of connection combinations. The conductor bushings of the TOS-series are suitable for ambient temperatures between –50 °C and +130 °C. The rated voltage is from 690 V up to 1600 V and the continuous current of the conductor bushings is from 16 A up to 630 A.
Technical Data
| Dimensions | see data sheet |
|---|---|
| Voltage | 690 V, 1000 V, 1600 V |
| Current | 16 A, 25 A, 63 A, 100 A, 160 A, 250 A, 400 A, 630 A |
| Thread | M16, M18, M24, M27, M33, M36, M42 |
| Service temperature range | -55 °C up to +130 °C |
