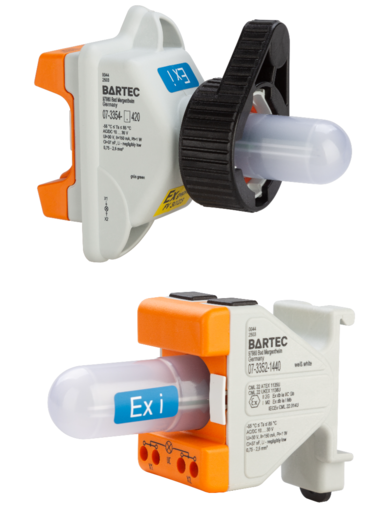

ComEx Global Ex i Illuminated Indicator Module
UncategorizedBenefits
- Easy installation
- Certified for Zone 1
- Intensive illumination by colored LED
-
Description
Marking
ATEX/UKEX:
Ex II 2G Ex db ia IIC
Ex I M2 Ex db ia I Mb
IECEx:
Ex db ia IIC Gb
Ex db ia I Mb
CEC (UL mark):
Ex db ia IIC Gb
Class I, Division 2, Groups A, B, C, D
NEC (UL mark):
Class I, Zone 1, AEx db ia IIC Gb
Class I, Division 2, Groups A, B, C, D
Ambient Temperature
Service temperature (Ts):
-55 °C to +85 °C
(-67 °F to +185 °F)
Certification
-
ATEX
- EN
-
IECEx
- EN
-
UKCA
- EN
-
UL
- EN
-
INMETRO
- PT
-
ECASEx
- EN
-
PESO
- ZZ
-
CCC
- EN-CN
-
EAC
- ZZ
The ComEx Ex i illuminated indicator module visualizes different system states by lighting up or going out a illuminated indicator.
It is suitable for use in almost all explosive areas in which a visual indication of a machine’s status is required.
The ComEx Ex i illuminated indicator module is flexible and available in different colours (red, green, yellow, white and blue). The connecting cable is connected to the ComEx Ex i illuminated indicator module via screw terminals. The ComEx Ex i illuminated indicator module offer the option of simple and fast mounting on a rail- or a panel mounted installation per direct mounting to the ComEx actuator. The ComEx Ex i illuminated indicator modules are developed and certified for globally market.
Technical Data
| Degree of protection | IP20 acc. to EN 60529 |
|---|---|
| Rated insulation voltage | 30 V |
| Rated voltage | DC 12-30 V |
| Material | thermoplastic |
| Connection | 0.75 mm² – 2.5 mm²/18 AWG – 12 AWG |
| Mounting | Panelmounted (locked to signal device actuators 07-3400-L* by bayonet catch)Railmounted (latched on mounting rail NS 35 x 7.5) |
| Lamp | LED (red, green, yellow, white, blue) |
| Mechanical life | > 105 running hours |
| Weight | Panelmounted approx. 110 g Railmounted approx. 90 g |
CAD data
-
07-3352-* Illuminated indicator module for railmounted
- DWG
- STP
-
07-3354-* Illuminated indicator module for panelmounted
- DWG
- STP
Manuals/Operating Instructions/Guides
- DE
- EN
- PT
Declarations
-
EU-Declaration of Conformity – 01-3300-7C0010
- DE
- EN
- FR
-
UK-Declaration of Conformity – 01-3300-7CU010
- EN
Data Sheets
