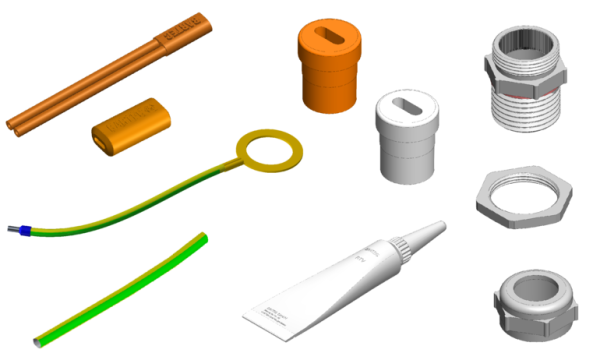

Cold applied kit CAK
UncategorizedConnection technology and termination for self-regulating heating cable
Benefits
- Easy installation with silicone adhesive
- Space-saving solution
- Under insulation applicable
-
Description
Marking
ATEX:
II 2G Ex eb 60079-30-1
II 2D Ex tb 60079-30-1
IECEx:
Ex eb 60079-30-1
Ex tb 60079-30-1
Ambient Temperature
Max. withstand temperature / max. Service temperature end seal +200°C
Certification
-
System Certificate ATEX
- EN
-
System Certificate IECEx
- EN
The cold applied technology is the ideal solution when connecting the PSB, MSB, HSB, HSB+ and HTSB heating cable to the junction box.
The end termination is achieved using a space-saving silicone end cap. The use of silicone parts and silicone adhesive enables the heating cable to be installed easily and quickly. In addition, no fire certificate is needed for installation in a potentially explosive atmosphere.
Technical Data
| Ambient temperature | -55°C to +55°C -67°F to +131°F |
|---|---|
| Max. withstand temperature / max. Service temperature end seal |
+200 °C +392°F |
| Min. installation temperature | -60 °C -76°F |
| Material | Silicone, brass, stainless steel, brass nickel plated |
| Ingress Protection | IP66 |
Data Sheets
CAK-SRS/SRG – ATEX/IECEx
