EZS – BMF Sealing Fittings & Three Piece Unions
EZS – BMF Sealing Fittings & Three Piece Unions
Cables and Wires, Cables, Glands and Accessories, Ex Conduit Fittings, UncategorizedBenefits
- Designed for vertical (EYS) or horizontal (EZS) pipes
- Different materials available on request
- IP 66 (sealing fittings) / IP66/67 (three pieces union)
- For the connection in electrical conduit plants
-
Description
Marking
ATEX (EYS-EZD):
Ex II 2 G Ex d IIC
Ex II 2 D Ex tD A21 IP66
ATEX (EZS):
Ex II 2 G Ex db IIC T6 Gb
Ex II 2 D Ex tb IIIC T85°C Db IP66
ATEX (BMF-BMM-BFF):
Ex II 2 G Ex db IIB Gb
Ex II 2 D Ex tb IIIC Db IP66/67
Ex II 2 G Ex db IIC Gb
Ex II 2 D Ex tb IIIC Db IP66/67
IECEx(EYS-EZD):
Ex II 2 G Ex d IIC
Ex II 2 D Ex tD A21 IP66
IECEx(EZS):
Ex II 2 G Ex db IIC T6 Gb
Ex II 2 D Ex tb IIIC T85°C Db IP66
IECEx(BMF-BMM-BFF):
Ex II 2 G Ex db IIB Gb
Ex II 2 D Ex tb IIIC Db IP66/67
Ex II 2 G Ex db IIC Gb
Ex II 2 D Ex tb IIIC Db IP66/67
Ambient Temperature
-20 °C ÷ +60 °C (sealing fittings)
-60 °C ÷ +130 °C (three pieces union)
(standard)
Certification
-
ATEX (Three pieces unions)
- EN
-
ATEX (Sealing fittings)
- EN
-
ATEX (Sealing fittings – ICEPI)
- EN
-
ATEX (ICEPI)
- IT
-
IECEx (Sealing fittings)
- EN
-
IECEx (Three pieces unions)
- EN
-
INMETRO
- PT
-
NEC505
- EN
-
ECASEx
- EN

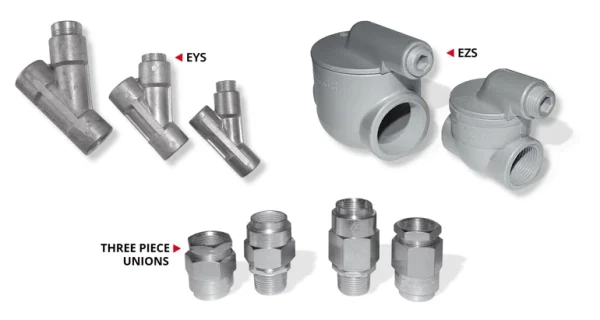

Flameproof Ex d sealing fittings BARTEC EYS/EZS series and Exd three piece unions BARTEC B../ R.. series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
Fitting in cast light alloy with side opening for sealing with special compound.
Used for sealing of conduit and to prevent eventual explosion spreading.
Three pieces unions B.. /R.. series allow an independent rotation and allow the connection between pipes enclosures or different equipment. Sealing fittings are designed for vertical (EYS) or horizontal (EZS) pipes.
Technical Data
| Protection class | IP 66 or IP 68 (IEC/EN 60529) |
|---|---|
| Material | Marine grade Aluminium alloy galvanized steel |
| Weight | see data sheet |
| Dimensions | see data sheet |
Manuals/Operating Instructions/Guides
-
ATEX – Instruction for use (three pieces unions)
- EN
- IT
-
ATEX (ICEPI) – Instruction for use
- EN
- IT
-
IECEx – Instruction for use (three pieces unions)
- EN
- IT
-
INMETRO – Instruction for use
- EN
- PL
-
NEC505 – Instruction for use
- EN
- IT
-
ATEX_IECEx_Instructions (sealing fittings)
- EN
- IT
Declarations
-
ATEX – Declaration of conformity (three pieces unions)
- EN
- IT
-
ATEX (ICEPI)- Declaration of conformity
- EN
- IT
-
IECEx – Declaration of conformity (three pieces unions)
- EN
- IT
-
ATEX – Declaration of conformity (sealing fittings)
- EN
- IT
-
IECEx – Declaration of conformity (sealing fittings)
- EN
- IT
