EJC Enclosure
UncategorizedFlameproof enclosures BARTEC C or EJC series are designed to be installed…
-
Description
Marking
ATEX:
Ex II 2 G Ex db IIC T6…T3 Gb
Ex II 2 G Ex db [ia/ib/ic IIA or IIB or IIC Ga/Gc] IIC T6…T3 Gb
Ex II 2 D Ex tb IIIC T85°C…T200°C Db IP66
Ex II 2 D Ex tb [ia Da/ib/ic Dc] IIIC T85°C…T200°C Db IP66
IECEx:
Ex db IIC T6 or T5 or T4 or T3 Gb or
Ex db [ia IIA or IIB or IIC Ga] IIC T6 or T5 or T4 or T3 Gb or
Ex db [ib IIA or IIB or IIC] IIC T6 or T5 or T4 or T3 Gb or
Ex db [ic IIA or IIB or IIC Gc] IIC T6 or T5 or T4 or T3 Gb
and/or
Ex tb IIIC T85°C or T100°C or T135°C or T200°C Db or
Ex tb [ia Da] IIIC T85°C or T100°C or T135°C or T200°C Db or
Ex tb [ib] IIIC T85°C or T100°C or T135°C or T200°C Db or
Ex tb [ic Dc] IIIC T85°C or T100°C or T135°C or T200°C Db
Ambient Temperature
-60 °C to +60 °C (standard)
Certification
-
ATEX (DEKRA)
- EN
-
IECEx (DEKRA)
- EN
-
ATEX (INERIS)
- EN
-
IECEx (INERIS)
- EN
-
CCC
- EN
-
ECASEx
- EN
-
INMETRO
- PT
-
CCOE-PESO
- EN
-
EAC
- RU

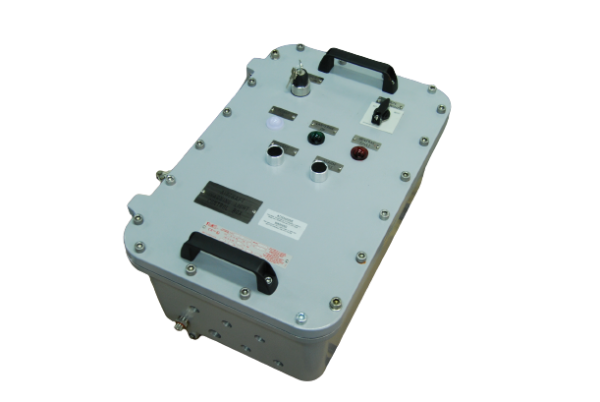

Flameproof enclosures BARTEC C or EJC series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
These enclosures are designed to contain regular industrial electrical components or equipment on the mounting plate like fuses, transformers, circuit breakers, relays, PLC etc. and to be fully integrated in the hazardous area as control or distribution panel.
Technical Data
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Enclosure material:Copper free aluminium alloy ( 0.1% copper) Surface treatment: External powder type painted RAL9006 Internal anti-condense painting RAL2004 (optional) Enclosure lid: Bolts in stainless steel AISI304 (A2) Internal mounting plate : Aluminium |
| Weight | see data sheet |
| Dimensions | see data sheet |
| Accessories | Glass round/square shape window (optional) Drain and breather valves (optional) |
| Quantity of cable entries | see data sheet |
| Voltage | Max. rated voltage : 13kV (AC) / 750V (DC) |
| Current | Max. rated current : 2000A |
| Imapct test | 7 Joule for metallic parts of enclosure (Passed) 2 Joule for tempered glass windows (Passed) |
