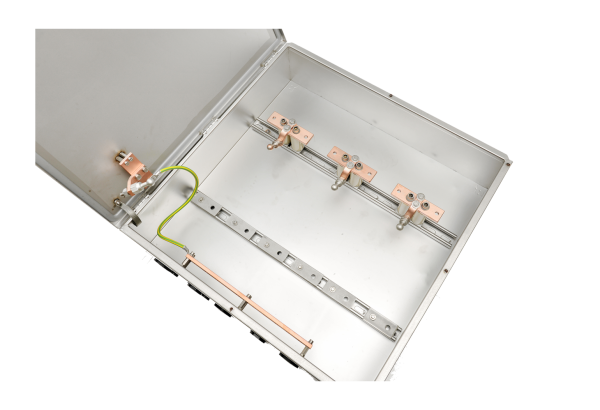

TNHV

TNHV

SKU: HV

Medium / High Voltage Cabinets Up to 40kV

Benefits

High voltage box typical 6.6kV, 8kV, 11kV, 24kV, 36kV and 40kV.
Top drive
Motor/pump
Subsea umbilical/downhole termination
Topside Umbilical Termination Unit (TUTU) signal/power/hydraulics
Umbilical fiber signal/power splitter

Marking

N/A

Ambient Temperature

N/A

Certification

ATEX
- EN
- EN
- EN
IECEx
- EN
- EN
UKEX
- EN
EAC
- RU

The BARTEC high voltage range of enclosures are designed to meet the harshest environments and are ideal for any rugged medium voltage application where safety and flexibility is key. With its flexible design and certification, we are able to support up to 40kV in zone 1/2 and 2100 A

Manuals/Operating Instructions/Guides

User Manual – EXtreme® Medium / High Voltage Cabinets up to 40kV

Declarations

Declaration of Conformity – 23067-5-v1-TEC-20-ATEX-TNHV2-A-EU-DOC
- SV
Declaration of Conformity – TEC-17-ATEX-TNHV-01-A
- SV
Declaration of Conformity – 23020-5 v3 BAR-23-ATEX-EXtreme®-01-C EU DOC
- SV
Declaration of Conformity – 23349-5 v3 BAR-23-UKEX-EXtreme®-01-C UK DOC
- EN

Data Sheets

Data Sheet – Medium / High Voltage Cabinets up to 40kV
