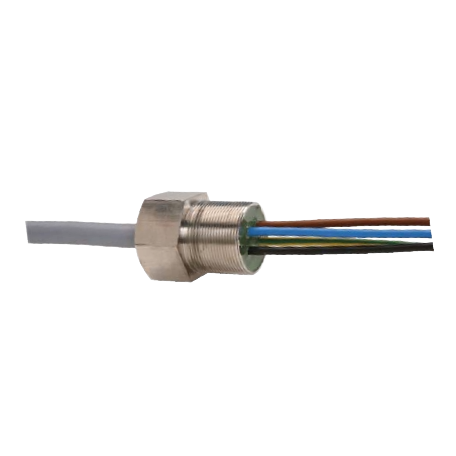

Cable Entries For Zone 1
Electrical Components, Line bushings and Entries, Line Entries, UncategorizedBenefits
- Ex e terminal boxes are dispensed with
- Suitable for cables with 1 to max. 25 cores
- Sleeves from M 16 x 1.5 to M 48 x 1.5
- Compact, space-saving design
- The cores are connected directly to the electrical load at the Ex d side, intermediate terminal positions are dispensed with
- Rated insulation voltage of up to 1000 V for small dimensions
- Permanent heat resistance up to +110°C
-
Description
Marking Cable entry screwable: Cable entry pluggable: Guidelines/Norms EN 60079-0, EN 60079-1, EN 60079-31 Ambient Temperature -60 °C ≤ Ta ≤ +110 °C Certification ATEX
(-76 °F ≤ Ta ≤ +230 °F)
depending on the design and lead used
(temperature ranges apply to “fixed installation“ of leads)
EN
EN
IECEX
EN
EN
UKEX
EN
EN
Flameproof Ex d cable entries are elements which allow electrical cables to be introduced into an Ex d enclosure, without danger of explosion. The additional Ex e terminal housing is not required. A main distribution box may by used or the connections can be made outside the Ex-zone. The cable entry consists of a threaded metal sleeve, in which a sheathed cable is anchored and encapsulated. The individual cores are then connected directly inside the flameproof enclosure. The length of cores and cables are customer-tailored. All cables come with standard green-yellow earth leads. The length of engaged thread between the sleeve and the flameproof “d“ enclosure must comply with DIN EN 60079-0 and DIN EN 60079-1.
The following components can also be connected:
- Option to connect a p operator panel
- Option to connect additional pressure sensors
Technical Data
| Dimensions | see data sheet |
|---|---|
| Installation | pluggable non-threaded: ∅ 22 mm to ∅ 36 mm Sleeve material: Metal, bare, varnished or galvanised |
| Voltage | Rated voltage: 300 V/500 V/750 V/1000 V |
| Current | 6 A to 488 A (see data sheet) |
| Connection | max. number of cores in shielded cable: – non-threaded: 47 cores Cross-section: 0.25 mm² to 150 mm² |
