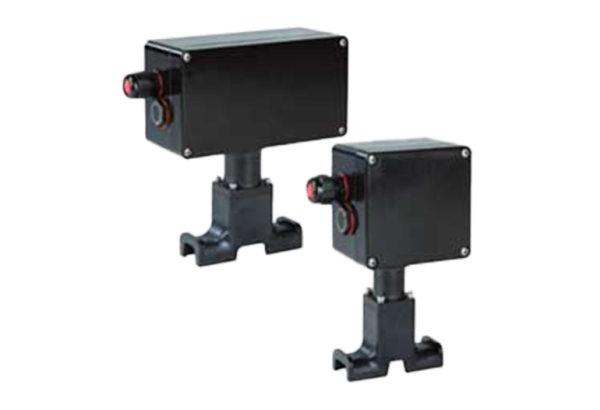

PBS/PBM
Heating Components, Heating Components and Accessories, Powerbox- and T-SplicePower entry or Splice connection with junction box
Benefits
- Build size allows up to 120 mm of thermal insulation
- On and Off-Pipe (Tankwall) mountable versions
- Including cold applied power and end termination kit (CAK)
- Fast installation and maintenance-free operation with spring type terminals
-
Description
Marking ATEX: II 2G Ex eb 60079-30-1 IIC T6…110°C (T4) Gb IECEX: Ex eb 60079-30-1 IIC T6…110°C (T4) Gb
Ambient Temperature -55°C up to +55°C
Certification The PBS Single Entry Power junction box is designed to connect one BARTEC parallel heating cable to power or to form a splice or powered splice. Technical Data Manuals/Operating Instructions/Guides Data Sheets
II 2D Ex tb 60079-30-1 IIIC TL80…TL110°C Db
Ex tb 60079-30-1 IIIC TL80…TL110°C Db
The PBM Multiple Entry Power junction box is designed to connect up to three BARTEC parallel heating cables to power or splice up to three trace heaters.
Depending on the type, one, two or three CAK or HSK connection and termination kits are included in every PBS and PBM kit.
ON Pipe Stand
Pipe mountable power junction box kit, integrating the functions of an insulation entry and power connection kit within a polyester enclosure.
OFF Pipe Stand
Off-pipe mountable power junctionbox for remote mount of power kit with a galvanized steel bracket and mounting plate and a Type 4X certified polyester enclosure. IEK Insulation Entry Kits must be ordered separately.
Rated Voltage
277V
Protection class
ATEX & IECEx types: IP 66
North America: Type 4X
Max. Pipe temperature
On Pipe Version: +240°C
Off Pipe Version: +250°C
Max. breaker rating
ATEX & IECEx types: 32A, C-Characteristic
North America: 40A
Terminals
Ex e, Spring Type, 6 mm² / 14 AWG
optionally 10 mm² / 12 AWG
Materials
Enclosure: Polyester, glass fibre reinforced
Stand: PPS, glass fibre reinforced
Mounting bracket and plate: galvanized Steel
