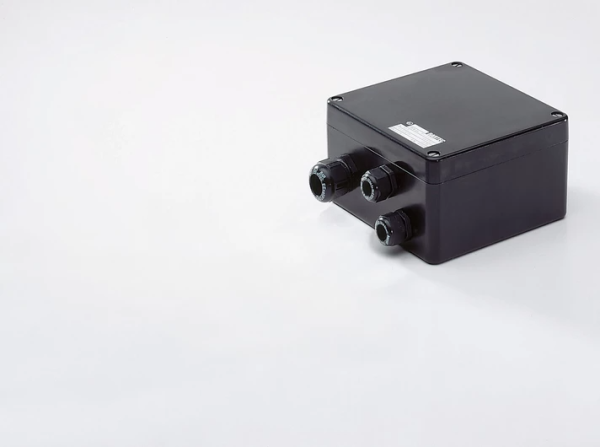

Junction Box Ex – EMK / EKL medium/premium
In stock
Junction Box Ex – EMK / EKL medium/premium
Heating Components, Heating Components and Accessories, Powerbox- and T-SpliceJunction Box
Benefits
- Chemical-resistant
- Temperature-resistant
- Flame-retardant
- For use in ex areas with surface resistance 109 Ohm
- Absolutely corrosion-proof
- Seawater-proof
-
Description
Marking
ATEX IBExU12ATEX1099 X
II 2G Ex eb IIC T6, T5 Gb
II 2D Ex tb IIIC T80 °C, T95 °C Db
IECEx IBE 12.0031X
Ex eb IIC T6, T5 Gb
Ex tb IIIC T80 °C, T95 °C Db
Ambient Temperature
Ambient temperature
-55 °C to +40 °C (T6)
-55 °C to +55 °C (T5)
Certification
-
ATEX
- DE
- EN
-
IECEx
- EN
-
CSA
- EN
-
EAC
- KZ
- RU
-
CCC
- CN
Polyester enclosures have proven their worth in many industrial plants.
They offer safe protection even when they are used under extremely unfavorable conditions, on exposure to aggressive chemical media or hard mechanical conditions.
The inside base of the enclosure has threaded bushings for the fastening of mounting rails or panels at its sides.
The enclosure is mounted by means of insulated screws outside of the lid seal.
Technical Data
| Supply Volatge | 550 V |
|---|---|
| Protection class junction box | IP 66/IP 67 |
| Protection class cable gland | IP65 |
| Gland size | 7 to 12/17mm |
| Material | glass-fiber reinforced polyester, surface resistance >10^9 Ω |
| Ambient temperature | -55 °C to +55 °C (T5) -55 °C to +40 °C (T6) |
| Mechanical resistance | impact energy 7 Nm |
Declarations
Declaration of Conformity
- EN
- FR
- DE
Data Sheets
