EKL Light Heat Shrink Technology
In stock
EKL Light Heat Shrink Technology
Connections, Splices, Terminations, Heating Components, Heating Components and AccessoriesConnection technology series resistance heating cabel
Benefits
- Easy and quick installation, short shrinking time
- Space-saving dimensions
- Low stock keeping, useable as connection and splice
- Highly resistant to almost all industrial chemicals and solvents
-
Description
Marking
N/A
Ambient Temperature
Operating temperature -55 °C to +200 °C
Certification
EU Declaration of Conformity
- DE
- EN
- FR

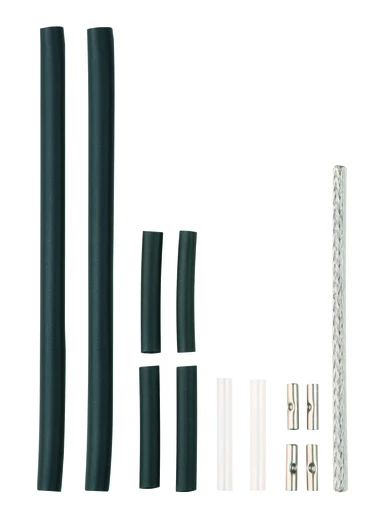

The heat shrink technology is suitable for EKL light und EKL medium in the non-ex area. It can be used in industrial and commercial areas.
The set serves to join two cold leads or to form two heating tape connections. The electrical connection of the heating conductor and protective braid is established by means of a crimp connection. The connection is sealed by the shrinkable tubes.
Technical Data
| Max. Nominal voltage | 750V |
|---|---|
| Max. nominal current | 25A |
| Operating Temperature | -55 °C to +200 °C |
| Min. installation temperature | -20 °C |
| Shock resistance | 4 Joule |
Manuals/Operating Instructions/Guides
Operating Instructions
- DE
- EN
Data Sheets
