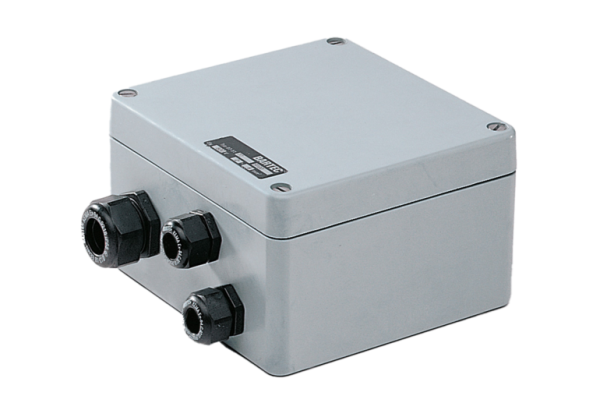

Junction Box Standard – EMK / EKL light
In stock
Junction Box Standard – EMK / EKL light
Heating Components, Heating Components and Accessories, Powerbox- and T-SpliceJunction Box
Benefits
- Chemical-resistant
- Temperature-resistant
- Flame-retardant
- Absolutely corrosion-proof
- Seawater-proof
-
Description
Ambient Temperature
Ambient temperature -55 °C to +55 °C
Polyester enclosures have proven their worth in many industrial plants. They offer safe protection even when they are used under extremely unfavorable conditions, on exposure to aggressive chemical media or hard mechanical conditions. The inside base of the enclosure has threaded bushings for the fastening of mounting rails or panels at its sides. The enclosure is mounted by means of insulated screws outside of the lid seal.
Technical Data
| Supply Volatge | 550 V |
|---|---|
| Protection class junction box | IP 66/IP 67 |
| Protection classcable gland | IP65 |
| Gland size | 7 to 12/17mm |
| Material | glass-fiber reinforced polyester, surface resistance >1012 Ω |
| Ambient temperature | -55 °C to +55 °C |
| Mechanical resistance | impact energy 7 Nm |
Declarations
Declaration of Conformity
- DE
- EN
- FR
Data Sheets
