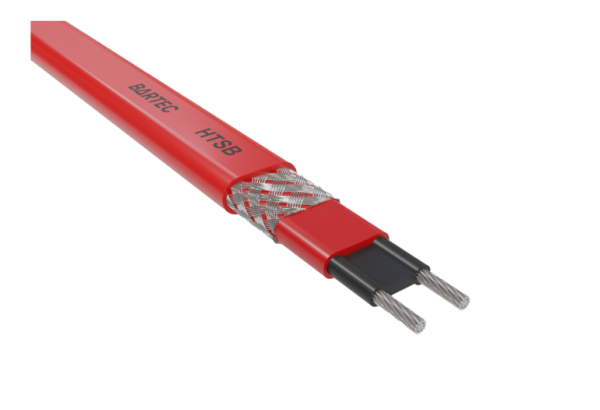

Self-regulating heating cable HTSB
Heating Cables, Self-Regulating Heating CableHigh temperature, self-regulating parallel heating cable
Benefits
- Self-regulating
- Steam purging possible
- Wide operating temperature range
- Simple installation thanks to its high flexibility
- Corrosion-proof and resistant to chemical attack thanks to its outer high temperature fluoropolymer protective jacket
-
Description
Marking ATEX: IECEx:
Ambient Temperature Max. continuous operating temperature, energized +250°C
Certification
II 2G Ex 60079-30-1 IIC T3, T2 Gb
II 2D Ex 60079-30-1 IIIC T200°C, T300°C Db
Ex 60079-30-1 IIC T3, T2 Gb
Ex 60079-30-1 IIIC T200°C, T300°C Db
Max. continuous exposure temperature, de-energized +250°C
The self-regulating heating cable HTSB is suitable for frost protection and temperature maintenance on pipes and vessels at high process temperatures in industry and hazardous areas. It can be used where steam cleaning is required.
The power output of the HTSB varies depending on the ambient temperature. If the ambient temperature increases, the heating output will be reduced.
With the high fluoropolymer protective jacket, the heating cable is resistant to oil, greases and most chemicals.
Technical Data
| Nominal voltage | AC 208 V to 277 V AC 110 to 120 V |
|---|---|
| Max. continuous operating temperature, energized | +250 °C |
| Max. continuous exposure temperature, de-energized | +250 °C |
| Min. installation temperature | -40 °C |
| Min. start-up temperature | -40 °C |
| Temperature class | T3: 5HTSB2, 10HTSB2, 15HTSB2, 20HTSB2 T2: 25HTSB2, 30HTSB2 |
| Max. braid resistance | 18,2 Ohm/km |
| Dimensions with braiding and jacket | 12.1 x 5.4 mm |
| Min. bending radius | 35 mm |
Manuals/Operating Instructions/Guides
-
Installation Instructions PSB, MSB, HSB, HSB+, HTSB – ATEX / IECEx
- EN
-
Design Guide HSB, HSB+, HTSB System – ATEX / IECEx
- EN
