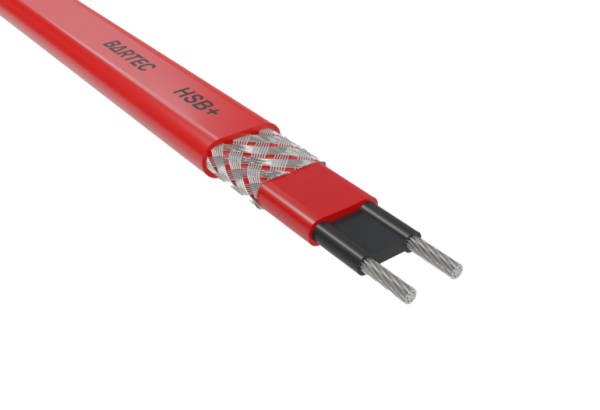

Self-regulating heating cable HSB+
Heating Cables, Self-Regulating Heating CableBenefits
- Self-regulating
- Can be cut to length at random thanks to its parallel current – supply
- Corrosion-proof and resistant to chemical attack thanks to its outer high temperature fluoropolymer protective jacket
- Simple installation thanks favourable dimensions
-
Description
Marking ATEX: IECEx:
Ambient Temperature Max. continuous operating temperature, energized +150°C
Certification
II 2G Ex 60079-30-1 IIC T3 Gb
II 2D Ex 60079-30-1 IIIC T200°C Db
Ex 60079-30-1 IIC T3 Gb
Ex 60079-30-1 IIIC T200°C
Max. continuous exposure temperature, de-energized +225°C
The self-regulating heating cable HSB+ is suitable for frost protection and temperature maintenance on pipes and vessels at high process temperatures in industry and hazardous areas. It can be used where steam cleaning is required.
The power output of the HSB+ varies depending on the ambient temperature. If the ambient temperature increases, the heating output will be reduced.
With the high fluoropolymer protective jacket, the heating cable is resistant to oil, greases and most chemicals.
Technical Data
| Nominal voltage | AC 208 V to 277 V AC 110 to 120 V |
|---|---|
| Max. continuous operating temperature, energized | +150 °C |
| Max. continuous exposure temperature, de-energized | +225 °C |
| Min. installation temperature | -40 °C |
| Min. start-up temperature | -40 °C |
| Temperature class | T3 |
| Max. braid resistance | 18,2 Ohm/km |
| Dimensions with braiding and jacket | 11,4 x 5,2 mm |
| Min. bending radius | 35 mm |
