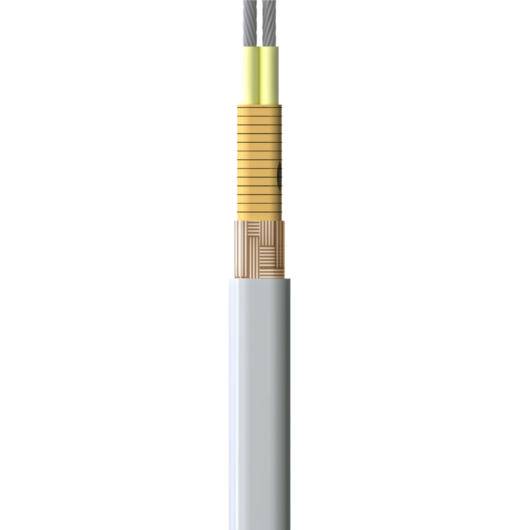

BPL-AL Parallel Constant Wattage Cable
Constant Wattage Parallel, Heating CablesBenefits
- High withstand temperature up to 350 °C
- Can be cut to length thanks to its parallel current supply
- Jacketed in a continuous aluminum extrusion for maximum mechanical strength
- Simple installation thanks to its high flexibility and favorable dimensions
-
Description
Marking ATEX:
Ambient Temperature Max. exposure temperature switched on +350 °C
Certification
II 2 G Ex 60079-30-1 IIC T* Gb
II 2 D Ex 60079-30-1 IIIC T# °C Db
IECEx:
Ex 60079-30-1 IIC T* Gb
Ex 60079-30-1 IIIC T# °C Db
Max. exposure temperature switched off +500 °C
BPL-AL is a parallel resistance trace heater that can be used for freeze protection or temperature maintenance in instrument tubing, pipework, and vessels requiring high power output or high exposure temperatures of up to 500 °C.
It can be cut to length at site and can replace Mineral Insulated cables for applications where the cut to length feature is preferred. This feature considerably simplifies project engineering and installation. The trace heater is cut and terminated directly on the construction site according to the circumstances. Parallel resistance heaters formed by a coiled resistive heating element wrapped around two parallel buss wires. The distance between the contact points forms the heating zone length.
Technical Data]
| Nominal voltage | 230 V AC (277 V AC) 115 V AC |
|---|---|
| Max. exposure temperature switched on | +350 °C |
| Max. exposure temperature switched off | +500 °C (intermittent) |
| Min. operating temperature | -40 °C |
| Min. installation temperature | -40 °C |
| Dimensions | 10.7 x 7.7 mm |
| Weight | 16.5 kg / 100 m |
| Min. bending radius | 50 mm |
