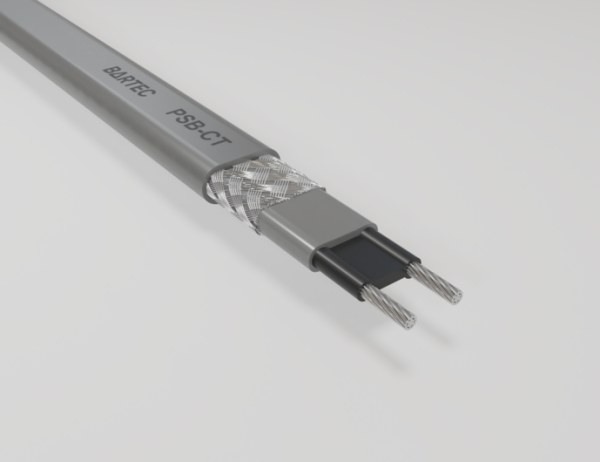

Self-regulating heating cable PSB
Heating Cables, Self-Regulating Heating CableLow temperature, self-regulating parallel heating cable
Benefits
- Self-regulating
- Can be cut at random length thanks to its parallel current supply
- Corrosion-proof and resistant to effects of chemicals thanks to its protective jacket
- Electrically and mechanically protected by a tinned copper braid
- Simple installation thanks to its high flexibility and favourable dimension
-
Description
Marking ATEX: IECEx: CSA:
Ambient Temperature Max. continuous operating temperature, energized +65°C
Certification
II 2G Ex 60079-30-1 IIC T6, T5 Gb
II 2D Ex 60079-30-1 IIIC T80 °C, T95 °C Db
Ex 60079-30-1 IIC T6, T5 Gb
Ex 60079-30-1 IIIC T80 °C, T95 °C Db
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 2, Groups E, F, G
Class III
Max. continuous exposure temperature, de-energized +85°C
The self-regulating heating cable PSB is suitable for frost protection and temperature maintenance on pipes and vessels at low process temperatures in industry and hazardous areas.
The power output of the PSB varies depending on the ambient temperature. If the ambient temperature increases, the heating output will be reduced.
While the polyolefin protective jacket is for aqueous, inorganic chemicals, the fluoropolymer protective jacket is suitable for organic chemicals.
Technical Data
| Nominal voltage | AC 208 V to 277 V AC 110 to 120 V |
|---|---|
| Max. continuous operating temperature, energized | +65 °C +150°F |
| Max. continuous exposure temperature, de-energized | +85 °C +185°F |
| Min. installation temperature | -55 °C -67°F |
| Min. start-up temperature | -55 °C -67°F |
| Temperature class | T6: 3PSB2, 5PSB2 T5: 8PSB2, 10PSB2 |
| Max. braid resistance | 18,2 Ω/km |
| Dimensions with braiding and jacket | 11.8 x 5.8 mm with polyolefin protective jacket 11.6 x 5.6 mm with fluoropolymer protective jacket 0.46 in x 0.22 in with polyolefin protective jacket 0.46 in x 0.23 in with fluoropolymer protective jacket |
| Min. bending radius | 25 mm 0.98 in |
