In stock

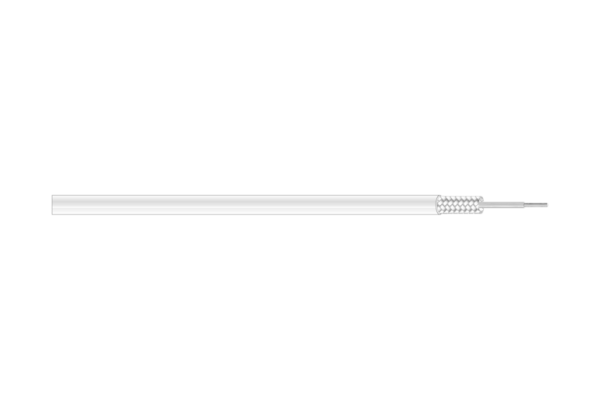

EKL light Single-core heating cable
Heating Cables, Series Resistance Heating CablesSeries resistance polymer insulated heating cables
Benefits
- Constant power output per meter
- Steam purging resistant
- Suitable for high temperatures up to +260 °C
- Easy installation, simple assembly on site, very flexible
- Highly resistant to almost all industrial chemicals and solvents
-
Description
Ambient Temperature
Operating temperarure -60°C to +260°C
Certification
EU Declaration of Conformity
- DE
- EN
- FR
EKL light is a serial resistant heating cable for use in industrial and commercial areas. It is suitable for frost protection applications and temperature maintenance on pipes and tanks and it also extremely flexible.
This makes EKL light easy to install, even on irregular shapes such as on pumps, valves and flanges. The PFA protective jacket gives the EKL light a high degree of chemical and mechanical resistance, even at high temperatures.
Technical Data
| Nominal voltage | 500V |
|---|---|
| Operating Temperature | -60 °C to +260 °C |
| Min. installation temperature | -60 °C |
| Min. bending radius | 15 mm, 25 mm for 1R08 and 1R71 |
| Protective braid resistance | 18.0 Ohm/km |
| Shock resistance | 4 Joule |
Manuals/Operating Instructions/Guides
Operating Instructions
- DE
- EN
- FR
Data Sheets
