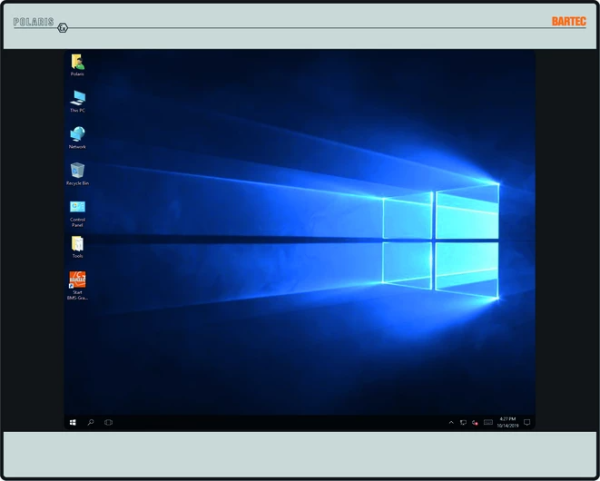

POLARIS Remote 19.1″
Operating and Monitoring Systems, Remote KVMBenefits
- Easy front panel fitting
- Easy wiring
- Connection of standard PCs in non-hazardous areas
- Optional touchscreen
- Transmission through fibre optical waveguide or copper
-
Description
Marking ATEX: IECEx:
Ambient Temperature Operation: 0 °C ≤ Ta ≤ +50 °C
Certification
Ex II 2G Ex db eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db
(32 °F ≤ Ta ≤ +122 °F )
System solution with heating on request
The POLARIS Remote 19.1″ unit by BARTEC is a display which a PC can be operated in safe areas of hazardous areas.Distances of up to 10000 m are possible. POLARIS Remote 19.1″ offers the user the possibility of using any currently available PC-based process control system, without any restrictions in the Ex area. The front panel installation assures ease of mounting. On request, the devices are also available as turn-key system solutions in a Stainless-steel enclosure as wall, floor or ceiling mounting versions. The screen of the Remote 19.1″ is a TFT display with an SXGA resolution and is characterised by its excellent brilliance and a very large reading angle.Intrinsically safe input devices can also be connected. The optional touchcreen (intrinsically safe) offers the ultimate in operating comfort. Connection in the safe area is realised via a local unit (included in scope of delivery).
Technical Data
| Protection class | IP 65 (front) IP 54 (back) |
|---|---|
| Structure | Front-panel fitting |
| Dimensions | 498 mm x 400 mm x approx. 135 mm |
| Wall cut-out | 484 mm x 386,5 mm + 0,5 mm |
| Material | Front: polyester foil on anodised aluminium plate (conditionally UV-resistant) Back: bichromated sheet steel |
| Cable length | POLARIS: terminals in the Ex e chamber Local unit: RJ45 connector Up to 300 m via STP copper cable VGA/PS2 (RS232 Touch) Up to 100 m via STP copper cable DVI/USB Optical fibre version |
| Storage temperature | -20 °C to +50 °C |
| Vibration | 0.7 g/1 mm; 5 Hz – 500 Hz pulse in all 3 axes |
| Shock resistance | 15 g/11 ms pulse in all 3 axes |
| Weight | approx. 33 kg |
