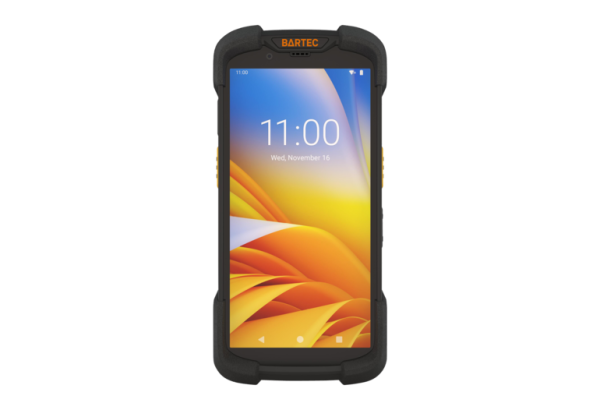

TC78ex-NI Touch Computer
Enterprise Mobility, Touch & Mobile ComputersBenefits
- Certified for Zone 2 and Div. 2 hazardous areas
- Ultra-rugged yet lighter and thinner than previous generations
- Faster, future-ready wireless connections with WiFi 6E and 5G
- 6-inch Full HD+ display
- Advanced Range scanning (up to 12m)
- More value with Mobility DNA software
-
Description
Marking
ATEX:
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIC T135°C Dc IP64
IECEx:
Ex ic op is IIC T4 Gc
Ex ic op is IIIC T135°C Dc IP64
UKEX:
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIC T135°C Dc IP64
NEC/CEC 500/505:
Class I Div. 2 Groups A, B, C and D
Class II Div. 2 Groups F, G
Class III; T4
Ambient Temperature
Operating temperature
-20°C to +50°C (-4°F to 122°F)
Storage temperature
-40°C to +70°C (-40°F to 158°F)
(without battery)
Certification
-
ATEX Zone 2/22
- DE
- EN
-
IECEx Zone 2/22
- EN
-
UKEX Zone 2/22
- EN
-
NEC/CEC 500/505
- EN
Introducing the TC78ex-NI, a new generation of touch computer designed for a new generation of mobile solutions.
Streaming video, video calls, intuitive multimedia-rich apps, augmented reality apps that enable new, more effective workflows — the rugged, thinner and lighter TC78ex-NI supports them all.
More processing power for simultaneous app support. A 6-inch advanced display. Comprehensive wireless network support for unmatched performance and reliability — Wi-Fi 6E, 5G and CBRS (for North America). Bluetooth 5.2 for superior accessory performance. Crystal clear voice on audio and video calls. The next level in scanning performance with the SE55 Advanced Range scan engine.
The powerful free Mobility DNA tools are pre-installed and ready to use, making it easier to stage, secure and troubleshoot devices, capture and send data to your applications right out of the box, and more.
Android is a trademark of Google LLC.
Technical Data
| Operating System | Android™ 14 Hardware supports future Android™ versions (up to Android™ 16) |
|---|---|
| Processor | Qualcomm 6490 Octa-Core, 2.7 GHz |
| Memory | 4GB RAM 64 GB Flash User accessible MicroSD, up to 2 TB |
| Dimensions | Size: 176.8 x 85.8 x 28.4 mm (6.96 x 3.38 x 1.12 inch) Weight: 349 g (0.77 lb) |
| IP Rating (IEC 60529) | IP 68 |
| Display | 6” Full HD+, bonded Corning Gorilla glass Multi mode capacitive touch |
| Barcode capture | Zebra SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology |
| Camera | Backside: 16 MP with autofocus Frontside: 8 MP |
