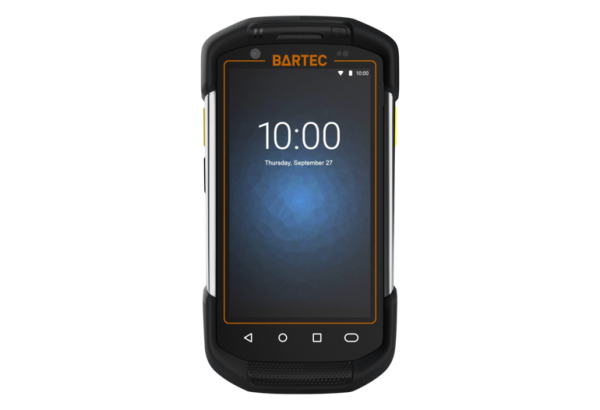

TC77ex-NI Touch Computer
Enterprise Mobility, Touch & Mobile ComputersBenefits
- Proven ultra-rugged design
- Most battery power in it’s class
- Integrated scan functionality
- High-quality integrated camera
- Android™ 14
-
Description
Marking
ATEX:
Ex II 3G Ex ic op is IIC T5 Gc
Ex II 3D Ex ic op is IIIB T100 °C Dc IP 64
IECEx:
Ex ic op is IIC T5 Gc
Ex ic op is IIIB T100 °C Dc IP 64
UKEX:
Ex II 3G Ex ic op is IIC T5 Gc
Ex II 3D Ex ic op is IIIB T100 °C Dc IP 64
NEC 500:
Class I Div. 2 Groups A, B, C und D
Class II Div. 2 Groups F, G
Class III
Temperature class T4
Ambient Temperature
Operating Temperature
-20°C to +50°C (-4°F to 122°F)
Storage Temperature
-40°C to +70°C (-42°F to 158°F)
(without battery)
Certification
-
ATEX Zone 2/22
- DE
- EN
-
IECEx Zone 2/22
- EN
-
UKEX Zone 2/22
- EN
-
NEC/CEC 500
- EN
-
KC
- KO
- KO
Your workers in the field need a mobile computer to communicate with others and to access information. Only in this way can they work with maximum efficiency and improve service to customers. You would like to provide your staff with an enterprise-class hand-held device that has been designed for field use – your employees, however, expect a device that has the same level of development and which is as easy to use as their own smartphone. The touch computers in the TC77-NI series meet all of these requirements because they have been optimised for use in business. A tough design for reliable, everyday operation. Access to practically all information in your back-end systems wherever and whenever you need it. The ability to collect more types of data quicker than ever before. Immediate Push-to-Talk communication with field staff, line managers, despatch coordinators and colleagues in the office. 4G LTE support for robust, wireless connections in the fastest mobile phone networks in the world. And an extensive range of accessories which meets the unique demands of practically all mobile employees. The TC77-NI series – a simple way of equipping your field team with a true mobile office – now also in a potentially explosive atmosphere.
Android is a trademark of Google LLC.
Technical Data
| Operating System | Android™ 14 Hardware supports future Android™ versions (up to Android™ 14) |
|---|---|
| Processor | Qualcomm Snapdragon™ 660 Octa-Core, 2,2 GHz |
| Memory | 4GB RAM 32 GB internal storage micro SD card – up to 32 GB SDHC and up to 256 GB SDXC |
| Dimensions | Size: 161 x 84 x 28 mm ( 6.3 x 3.3 x 1.1 inch) Weight: 376 g (0.83 lb) |
| IP Rating (IEC 60529) | IP 65 and IP 68 |
| Display | 4.7″, bonded Corning Gorilla Glass Dual mode capacity touch Usability with stylus, bare or gloved fingertip |
| Barcode capture | Zebra SE 4770-SR 1D/2D standard range imager |
| Camera | Backside: 13 MP with autofocus Frontside: 5MP fixed focus |
Battery documents
-
Battery – Material safety data sheets (MSDS)
- EN
-
Battery – Test summery for UN38.3
- EN
Accessories/System Overview
- DE
- EN
Case Studies/Use Cases
-
TC77ex-NI for the paint industry
- DE
- EN
-
TC7Xex-NI in use with explosive manufacturers
- DE
- EN
Questionnaires/Requirement Sheets
-
Information and settings about available Touch Mode
- EN
-
Information about device reset options
- EN
Manuals/Operating Instructions/Guides
- DE
- EN
Declarations
-
EU-Declaration of Conformity TC77ex -NI
- DE
- EN
- FR
-
UK-Declaration of Conformity TC77ex -NI
- EN
-
EU-Declaration of Conformity – Battery TC77ex -NI
- DE
- EN
- FR
-
UK-Declaration of Conformity – Battery TC77ex -NI
- EN
Data Sheets
Brochures
-
TC77ex-NI
- DE
-
TC77ex-NI
- EN
