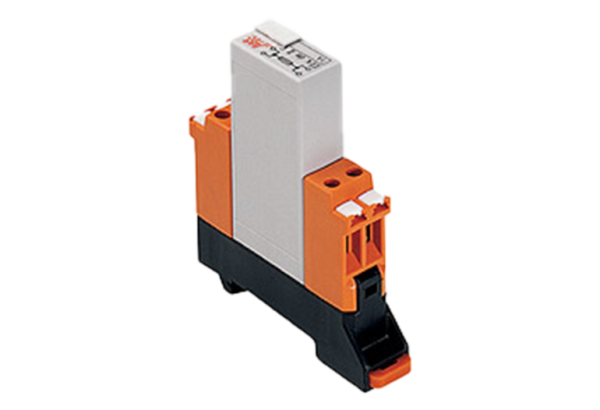

Fuse Fast Acting
Electrical Components, Fuse and ResistorMax. 1.25 A with single terminals for zone 1/21
Benefits
- fitted in enclosures with explosion protection
- integrated double terminals
-
Description
Marking Ex II 2 G / I M2 Ambient Temperature -40 °C to +50 °C at T6 Certification ATEX
Ex db e IIC Gb
Ex db e I Mb
Class I Zone 1 IIC
A/Ex d e IIC Gb
DE
EN
IECEX
EN
CSA
EN
INMETRO
PT
Fused modules are required to protect equipment and power circuits in areas in which an explosion hazard exists. The increasing automation of functions and processes make it necessary to install the standard protective devices on-site. An advantage of MODEX fuses is that they are fitted in explosion-protected enclosures with integrated double terminals. This allows the input and output voltage to be used further by the MODEX component. Please indicate the desired current value with your order (see selection chart).
Technical Data
| Protection class | Module: IP 66/IEC 60529 Terminals: IP 20/IEC 60529 |
|---|---|
| Material | High quality thermoplastic |
| Installation | TH 35 x 7.5 (15) EN 60715 |
| Storage temperature | -40 °C to +70 °C |
| Weight | 0.055 kg |
| Voltage | 250 V |
| Current | 0.1 A to 1.25 A (see data sheet) |
| Connection | Terminals 2.5 mm², fine stranded |
Manuals/Operating Instructions/Guides
Safety Instruction – 07-7311*
- DE, EN, FR
Declarations
Declaration of Conformity – 01-7311-7C0030
- DE, EN, FR
Documents
Brochure – MODEX
- ES, FR, IT, PT, RU, TR
Brochures
Brochure – MODEX
- DE, EN, ZN
MODEX system description
- DE
Othet
Step-Data: 07-7311-61*
- .STP
Data Sheet
Data Sheet – Fuse fast acting, max. 1.25 A with single terminals
