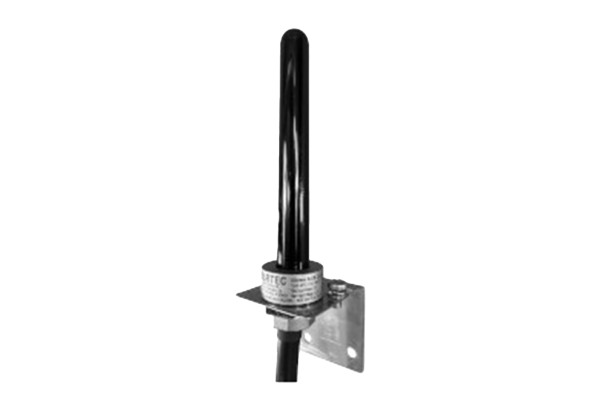

Xbeam™ A EX 2.4GHz & 5.0GHz
Antennas, IIoT and ConnectivityBenefits
The antenna can be utilized in:
- Wi-Fi
- WLAN
- ZIGBEE
- Other 2.4 GHz and 5 GHz applications
-
Description
Marking
ATEX:
II 2 G Ex eb IIC T6 Gb
II 2 D Ex tb IIIC T85°C Db
IECEx:
Ex eb IIC T6 Gb
Ex tb IIIC T85°C Db
Ambient Temperature
-40°C ≤ Ta ≤ +60°C
Certification
-
IECEx
- EN
-
ATEX
- EN
-
UKEX
- EN
The Xbeam™ A EX is an ATEX and IECEx approved RF antenna for creating wireless networks (typically Wi-Fi) and wireless telemetry systems in hazardous area. The antenna is not limited to a specific network protocol and can be used for any 2.4GHz and 5.0GHz application. The antenna is optimized for use in steel and concrete structure environments where multipath effects and reflections are present.
The Xbeam A EX is a preferred solution where the access point/radio can be placed in safe zone or safe area and where cable length does not exceed 30 meters. The antenna can also be used with Ex e, Ex d or Ex p solutions.
Technical Data
| Compatibility | 802.11a/b/g/n |
|---|---|
| Frequency | 2.4GHz and 5GHz or 2.4-5.8GHz |
| Polarization | Vertical |
| Max input voltage | 20 V (EX limitation) |
| Max input power | 2 Watts (EX limitation) |
| Height | 140 mm 180 mm incl. bracket |
| Width, diameter | Ø 30 mm 45 mm incl. bracket |
| Mounting method | Wall/mast bracket |
| Weight, incl bracket | 100 g |
| Ingress protection | IP66/IP67 |
