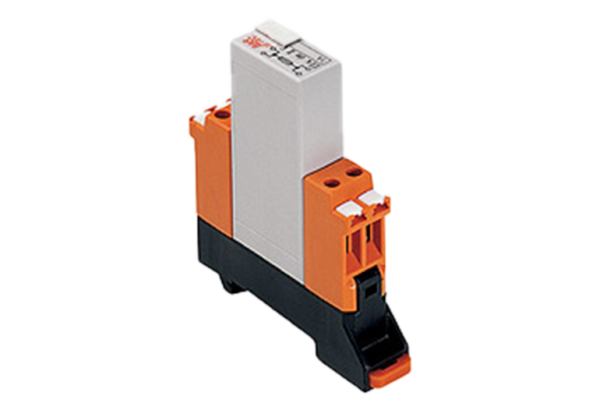

(Precision) Resistors
Electrical Components, Fuse and ResistorMax. 0.8 W for zone 1/21
Benefits
- monitoring switching contacts on relays
- open circuit monitoring
-
Description
Marking Ex II 2G Ex db e IIC Gb Ambient Temperature -40 °C to +40 °C at T6 Certification ATEX
Ex I M2 Ex db e I Mb
Ex d e IIC Gb
Ex d e I Mb
Class I, Zone 1, IIC
A/Ex d e IIC Gb
+40 °C to +60 °C at T4
DE
EN
IECEx
EN
CSA
EN
INMETRO
PT
For general use throughout the field of measuring and control engineering for hazardous areas (e. g. monitoring switching contacts, open circuit monitoring).
Technical Data
| Protection class | Module: IP 66/IEC 60529 Terminals: IP 20/IEC 60529 |
|---|---|
| Material | High-quality thermoplastic |
| Installation | TH 35 x 7.5 (15) EN 60715 |
| Storage temperature | -40 °C to +70 °C |
| Weight | 0.050 kg |
| Current | see data sheet |
| Resistance | see data sheet |
| Connection | Terminals 2.5 mm², fine stranded |
Manuals/Operating Instructions/Guides
Safety Instruction – 07-7311*
- DE, EN, FR
Declarations
Declaration of Conformity – 01-7311-7C0030
- DE, EN, FR
Documents
MODEX Flyer
- ES, FR, IT, PT, RU, TR
Brochures
MODEX Flyer
- DE, EN
MODEX system description
- EN, DE
Othet
Step-Data: 07-7311-61*
- .STP
Data Sheet
Data Sheet – (Precision) Resistors max. 0.8 W
