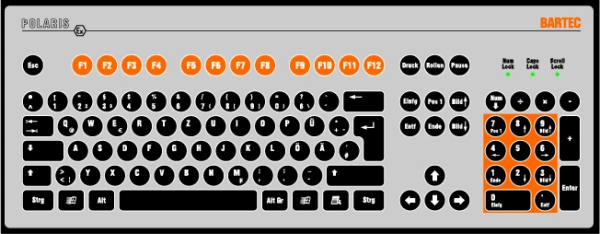

POLARIS Keyboard
Accessories, Operating and Monitoring Systems, Peripheral devicesBenefits
- Easy front panel fitting
- Modular construction
-
Description
Marking ATEX: IECEx:
Ambient Temperature see HMI
Certification
Ex II 2G Ex ib IIC T4 Gb
Ex II 2D Ex ib IIIC T120 °C Db
Ex ib IIC T4 Gb
Ex ib IIIC T120 °C Db
ATEX
IECEX
CSA
CCC
INMETRO
KCS
The intrinsically safe keyboard and the mouse variants are intended for POLARIS Professional and POLARIS Remote for zone 1 and 2 and for zone 21 and 22. They are connected directly to the POLARIS Panel PC or POLARIS Remote. The chemically resistant polyester foil is easy to clean and resistant to many aggressive fluids. The keyboard is available in various languages.
Technical Data
| Protection class | IP 65 |
|---|---|
| Structure | Front-panel fitting |
| Dimensions | 420 mm x 170 mm |
| Wall cut-out | 390 mm x 140 mm |
| Installation depth | 18 mm |
| Material | Polyester foil on aluminium sheet (conditionally UV-resistant) |
| Weight | approx. 700 g |
Data Sheets
Data Sheet – Enclosure for mouse and keyboard, Keyboard,
