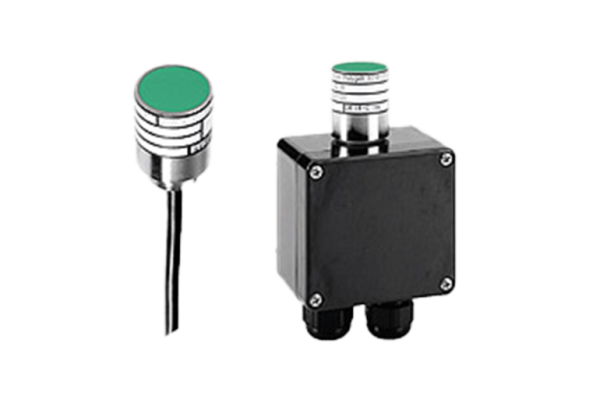

Mte Mini-thermostat
Ambient Sensing, Control, Monitoring and Sensing, LocalBenefits
- Little space needed thanks to its small compact construction
- High switching capacity
- Extremely adaptable to the surrounding conditions
- Protection class IP 66
-
Description
Marking Ex II 2G Ex db IIC T6 Gb
Ambient Temperature -40 °C to +40 °C
Certification
Ex II 2G Ex db eb IIC T6 Gb
Ex II 2D Ex tb IIIC T80 °C Db
ATEX
IECEx
The Mini-Thermostat is a versatile solution for precise temperature control in a variety of settings. It is ideal for detecting ambient temperatures in heating systems, regulating internal temperatures in protective transmitter boxes and control cabinets, and notifying you of temperature fluctuations outside of your desired range. With its compact size and easy installation, the Mini-Thermostat is a reliable and efficient choice for your temperature regulation needs.
Technical Data
| Switching points and tolerances | Off: 14°C + 5K | On: 4 + 3K | |
|---|---|---|
| Off: 25°C + 3,5K | On: 15°C + 3,5K | ||
| Electrical data | Switching capacity AC 230 V/6 A | |
| Switch contacts 1 normally closed contact as standard version (opens as the temperature rises) alternative configurations on request | ||
| connection cable: 3×0.75mm² | Terminals ( enclosure version) 2.5mm² |
Declarations
EU Declaration of Conformity
MTE
- DE
- EN
- FR
Data Sheets
Datasheet
