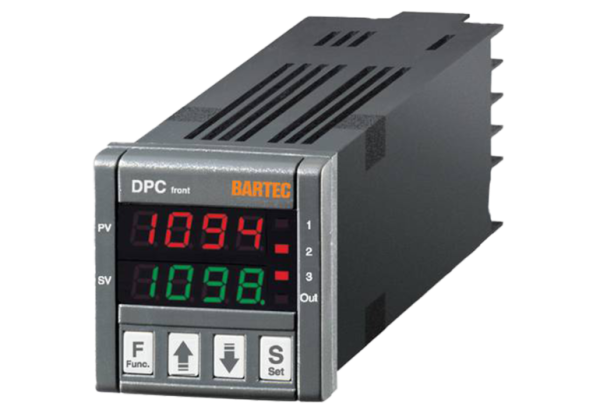

DPCfront Standard
Central, Control, Monitoring and Sensing, Single ChannelDigital Programmable Temperature Control Device
Benefits
- Universal measuring input
- Wide voltage supply input
- Sensor monitoring
- Can in conjunction with Pt100 Ex, to be used for temperature control of explosion-protected heating circuits
-
Description
Marking CE
Ambient Temperature Operating temperature range
0 °C to +50 °C
The DPCfront Standard Temperature Control Device is a versatile control solution that offers basic on/off control with two relay outputs for control and alarm signalling, making it suitable for normal applications. Setting up the device is made simple with the Easy Start-up function, where users only need to set the setpoint and alarm value(s). Additionally, for those who require more advanced control features, this device can be used with an external semiconductor relay as a control device with PID control characteristics. The DPCfront Standard Temperature Control Device provides accurate and reliable temperature control for your processes.
Technical Data
| Controller | ON/OFF or PID | |
|---|---|---|
| Sensor input Pt100, mV Standard signals Thermocouple J, K, S | ||
| Electrical data | Supply voltage AC 100V to 240 V | |
| Output 1: Logic output for SSR control (DC 11 V/20 mA | ||
| Output 2: Relay output 1 normally open contact (8 A – AC 1, 250 V) | ||
| Output 3: Relay output 1 normally open contact (5 A – AC 1, 250 V) | ||
| Mechanical data | Dimensions (L x W x D) 48 mm x 48 mm x 108 mm | |
| Installation Front panel (Cut-out 45.5 mm x 45.5 mm) | ||
| Protection class IP 54 or IP 65 with installation sealing | ||
Declarations
-
EU Declaration of Conformity
- DE
- EN
- FR
-
UK Declaration of Conformity
11-8821-7CU002
- EN
Data Sheets
