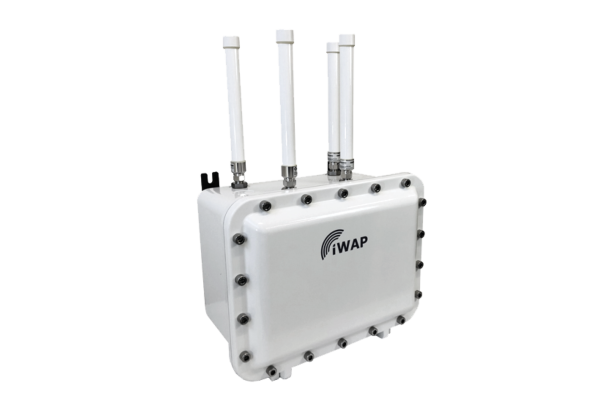

IWAP 107
IIoT and Connectivity, Wireless NetworksBenefits
- Intrinsically safe RF outputs
- Easy to install and maintain
- ATEX & IECEx Zone 1 and 21 certified
- US & Canada Class I Div 1 / Zone 1 and 21 certified
- Use any wireless technology from any vendor
-
Description
Marking
Ex II 2 (1) GD Ex d [ia IIC Ga] IIB+H2 T5 Gb
Ex II 2 (1) GD Ex tb [ia Da] IIIC T100°C Db
cMETus Class I, II, Div 1, Groups B-G
cMETus Class I, II, Zone 1/21 Groups IIB+H2, III
Ambient Temperature
Ambient temperature depends on device chosen
The iWAP 107 is not just an enclosure, but a Zone 1 and 21, Class 1 and Division 1 certified wireless enclosure system. Built for wireless applications, the iWAP 107 includes our proprietary iSOLATE RF isolation technology, meaning you can use standard antennas in the hazardous area.
The internal chassis packs lots of functionality into a compact space meaning you can choose from a range of wireless technologies, such as Wi-Fi, UHF RFID readers, LTE routers, and IoT gateways including LoRa, WiHART, or ISA100.
Technical Data
| Material | Marine grade copper-free aluminium light alloy, epoxy powder coated or 316L Stainless Steel (optional) |
|---|---|
| Weight | Aluminium: c. 26.5kg (POE version) 316L Stainless Steel: c. 70kg (hardware dependant) |
| Dimensions | Aluminium: 415 x 315 x 250mm (16.34 x 12.4 x 9.84in) 316L Stainless Steel: 415 x 315 x 253mm (16.34 x 12.4 x 9.96in) |
