iWAP XN3 X2000
IIoT and Connectivity, Wireless NetworksBenefits
- Highly rugged, IP66 and NEMA 4 rated
- ATEX and IECEx Zone 2 and 22 certified
- cMETus Class I, II Division 2 and Zone 2 certified
- Full Bluetooth capability through Bluetooth 4.0 and 5.0
- Use non-certified antennas with the intrinsically safe RF outputs
- Multiple connectivity options available
-
Description
Marking
II 3 (3) G Ex ec [ic Gc] nR IIC T6 Gc
3 D Ex [ic Dc] tc IIIC T85°C Dc cMETus Class I, Div 2, Groups A – D
Class II, Div 2, Groups F – G
cMETus Class I, Zone 2 AEx ec ic nR IIC T6 Gc
Class II, Zone 22 AEx ec ic tc IIIC T85°C Dc -40°C <= Tamb <= 60°C
Ambient Temperature

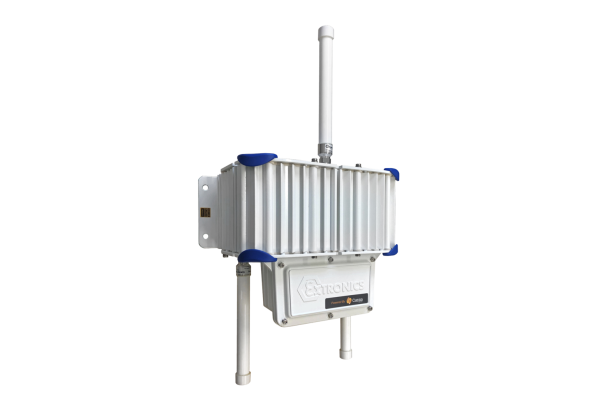

The iWAP XN3 X2000 is a Bluetooth Low Energy (BLE) Gateway with Wi-Fi connectivity as standard for use in Zone 2, 22 and Division 2 Hazardous areas.
The iWAP XN3 X2000 features a long-range BLE technology powered by Cassia Networks and is optimised for industrial IoT. The ruggedised enclosure features and integrated TPM chip, 1GB of ram and both BLE and Wi-Fi outputs included on all options.
BLE5.0 technology allows the iWAP XN3 X2000 to extend range to as far as 1 kilometer and enables remote control of up to 40 Bluetooth Low Energy devices (and hundreds in broadcast mode) without requiring any changes to end devices.
Technical Data
| Material | Marine grade copper-free aluminium alloy, epoxy powder coated |
|---|---|
| Weight | 8.5Kg |
| Dimensions | 293 x 388 x 220 mm |
