Insert Switch
Electrical Components, Limit and Insert Switch, SwitchesBenefits
- Compact design
- Wide range of actuators
- Silver and gold contacts available
- Various switching functions
-
Description
Marking ATEX: IECEx: Ambient Temperature Service temperature (Ts): Certification ATEX
Ex II 2G Ex db IIC Gb
Ex I M2 Ex db I Mb
Ex db IIC Gb
Ex db I Mb
-60 °C to +100°C
(-76°F to +212°F)
depending on the type and materials used
EN
IECEx
EN
CCC
ZH
EAC
RU
SC
UK

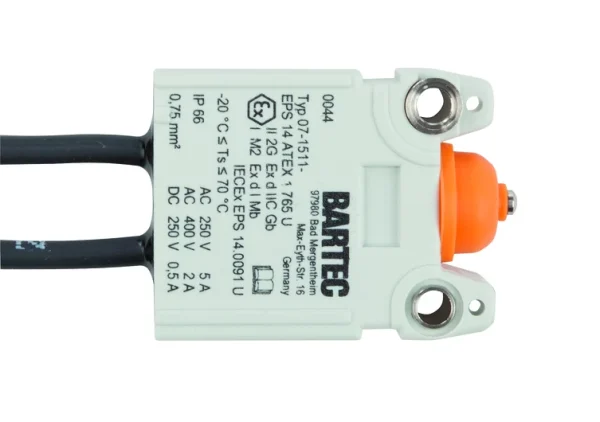

This switching element can be universally used for switching, controlling and regulating operations within Ex-areas. The insert switch is audited by EPS according to the latest ATEX-Guideline 2014/34/EC. Devices equipped with these insert switches have to be approved by a testing authority, the switch itself needs not be retested. The cores are cast-in at the back of the switch. Their standard length is 500 mm; other lengths are available on request. To connect the cores we recommend the miniterminals from BARTEC.
Technical Data
| Protection class | IP 66 (IEC 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | plastic (thermoplastics), plunger/additional actuator: stainless steel |
| Contact material | Silver or gold-coated contacts (all contact elements have a standard protective gold-coating as standard) |
| Mechanical life | > 2 x 106 switching cycles |
| Weight | with 500 mm cores: single-break switch 35 g, double-break switch 70 g |
| Voltage | see data sheet |
| Current | see data sheet |
Manuals/Operating Instructions/Guides
Operating Instructions – Insert switch 07-15.1-…./…
- DE
- EN
- PT
Declarations
EU-Declaration of Conformity – 01-1500-7C0001
- DE
- EN
- FR
UK-Declaration of Conformity – 01-1500-7C0001
- EN
Data Sheet
Data Sheet – Insert switch, Limit switch,
