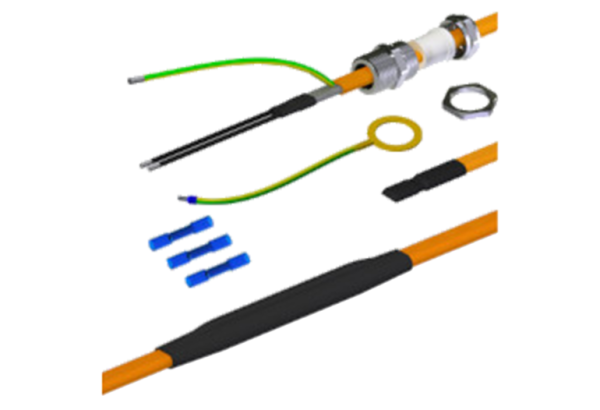

Heat Shrink Technology PSB/MSB/HSB

Marking

Class I, Div. 2, Groups A, B, C, D
Class II, Div. 2, Groups E, F, G
Class III

Ambient Temperature

40°C to +85°C / 130°C / +190°C

Certification

Certificate of Conformity

The heat shrink method is a tried and tested technology for connecting heating cables to the supply voltage or to other heating cables. This is done at the TSK kit using the butt connectors contained in the kit. The HSK kit is applicable using the BARTEC heating system junction boxes. The end termination is also realised in all kits using heat shrinkable tubings.

Technical Data

Nominal voltage	max. 277V
Nominal curent	max. 32 A
Ambient temperature	-20 °C to +85 °C (PSB) -40 °C to +130 °C (MSB) -40 °C to +190 °C (HSB)
Min. Installation temperature	-40°C
Protection class	IP66 Type 4X
