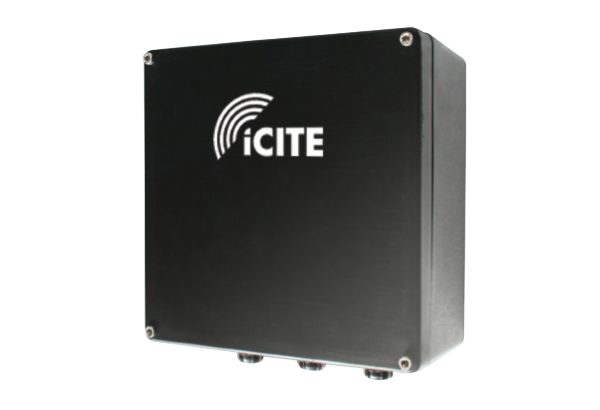

iCITE101
IIoT and Connectivity, RTLSBenefits
- Real-time chokepoint detection
- ATEX and IECEx certified
- North American MET certification (US & Canada)
- Robust design – IP66 fully ruggedised
-
Description
Marking
Ex II 2 G D Ex e mb IIC T6..T4 Gb
(T4 Ta = -20°C to +80°C, T5 Ta = -20°C to +60°C, T6 Ta = -20°C to +40°C)
Ex II 2 G D Ex e mb IIIC T100°C Db -20°C ≤ Tamb ≤ 80°C
cMETus Class I, II, Division 2 and Class III, Divisions 1 and 2
Ambient Temperature
-20°C ≤ Tamb ≤ 80°C
The iCITE101 brings the latest AeroScout exciter technology into hazardous areas and harsh environments. Robust and sophisticated RFID detection using Extronics RTLS Tags that can be accurately located in real time by the system. The iCITE101 transmits low frequency (LF) signals to trigger active RFID Tags as they pass through a chokepoint or as they approach the Exciter. The tags in turn transmit messages to compatible Access Points in the Tag’s range. This provides an instant acknowledgment of an event confirming that a tagged asset has passed through a gate, doorway, or some other well-defined area.
Technical Data
| Material | Black anti-static GRP enclosure |
|---|---|
| Weight | Approx 7.7kg (17lbs) |
| Dimensions | 250 x 250 x 120mm (9.85 x 9.85 x 4.72in) |
