In stock
IANT216
Antennas, IIoT and ConnectivityDual Band Wi-Fi Antenna
Benefits
- Omni-directional
- 2.4GHz and 5GHz antenna
- 6dBi gain
- Direct (iANT216M) and remote (iANT216F) mounting options
- Suitable for Groups I, II, III and -40°C to 70°C
-
Description
Marking
N/A
Ambient Temperature
-40°C to 70°C

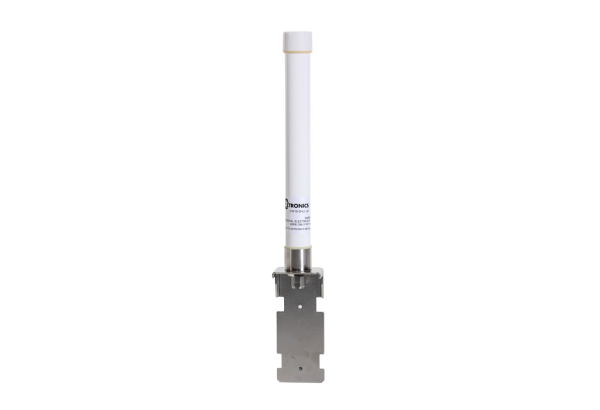

The iANT216 is a rugged omni directional antenna with dual band functionality. Part of Extronics’ iANT2xx range of standard antennas, the iANT216 is optimised for use in WLAN installations in the 2.4GHz/5.8GHz spectrum for IEEE802.11 b/g/n/ac wireless networks or 2.4GHz/5.8GHz wireless mesh Ethernet networks.
Technical Data
| Frequency band | 2.3-2.5 GHz 4.8-5.15 GHz 5.15-6.0 GHz |
|---|---|
| Polarisation | Vertical |
| Weight | iANT216M 150g iANT216F 300g (including bracket) |
| Dimensions | H250 mm x W25 mm |
Manuals/Operating Instructions/Guides
User Manual – iANT216
Operating Manual
- DE
