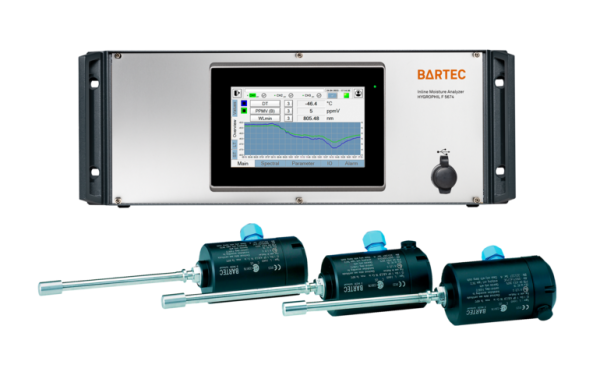

HYGROPHIL F 5674
HYGROPHIL F 5674
Analyzer and Measurement Technology, Process Analyzers, Trace Moisture / Hydrocarbon Dew PointProcess Trace Moisture Analyzer
Benefits
- Moisture Measurement in Gases and Liquids
- Combined moisture and temperature sensor
- Measurement at high pressure up to 20 MPa (2900 psi)
- Robust sensor construction for outstanding long-term stability
- On-line solutions with customized sample conditioning systems
- In-line installations with sensor retraction armature
- Certified for safe operation in hazardous area
- Control unit with full remote access
- Multi channel support
- Suitable for upgrade / replacement of preceding units (5672, 5673)
-
Description
Marking Evaluation Unit – 5674 Evaluation Unit – Channel Card 5674-100 Moisture Sensor L166x:
Ambient Temperature Evaluation Unit
Certification
IECEE: CB Scheme (IEC 61010-1:2010)
UL: 61010-1:2012/R:2019-07
CSA: C22.2 No. 61010-1:2012/A1:2018-11
ATEX: II (1)G [Ex ia op is IIC Ga]
IECEx: [Ex ia op is IIC Ga]
cCSAus: [(A)Ex ia op is IIC Ga]
ATEX: II 1/2 G Ex ia IIC T6 Ga/Gb
IECEx: Ex ia IIC T6 Ga/Gb
cCSAus: CL I, DIV 1, GP A, B, C, D T6 Ex ia
cCSAus: CL I, Zone 0/1, GP IIC T6
41 °F to 122 °F (AC) or 113 °F (DC)
Fibre Optic Cable
-4 °F or -67 °F to 158 °F
Moisture Sensor
-22 °F to 140 °F
HYGROPHIL F 5674 is a high-quality, fibre-optic hygrometer for measuring the moisture or trace humidity at low dew-point temperatures in gases and liquids. HYGROPHIL F 5674 works in multi-channel operation with a temperature compensated fibre-optic sensor developed especially for measuring the moisture content in gas mixtures and liquids.
Technical Data
| Measuring Technology | Fabry-Pérot-Interferometer |
|---|---|
| Measurement Channels | 1 (Single Channel) 1, 2 or 3 (Multi Channel) |
| Moisture Sensor | Calibrated Range: Dew point temperature -80 °C to 20 °C (-112 °F to 68 °F) Accuracy: +/- 1 K Customized calibration / validation on request Temperature Range: -30 °C to 60 °C Pressure Range: 0 to 20 MPa (0 to 2900 psi) Protection Type: IP65 (in built-in state) |
| Interfaces | 6x Analog Outputs (0/4…20 mA) 6x Relays (potential-free changeover contacts) Modbus RTU (RS485) Modbus TCP/IP Ethernet for Remote Access |
| HMI | Windows with 7″ touch display 800 x 480 pixels |
| Ambient conditions | Evaluation Unit: AC: 5 °C to 50 °C (41 °F to 122 °F) DC: 5 °C to 45 °C (41 °F to 113 °F) Moisture Sensor: -30 °C to 60 °C (-22 °F to 140 °F) |
| Explosion Protection | ATEX IECEx cCSAus others on request |
| Process Integration Sensor | direct Union-T Gas-/Liquid Separator Sensor Retraction Armature Standard Sample Conditioning System Customized Sample Conditioning System |
| Ready for Hydrogen | Hydrogen content in Natural Gas ≤ 10 Mol %: suitable without limitation Hydrogen content in Natural Gas ≤ 20 Mol %: suitable without limitation Operation in pure Hydrogen: suitable without limitation |
