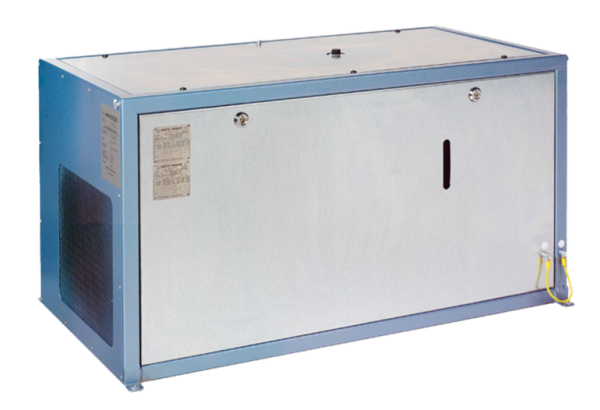

FKS-KWS Closed Loop Chiller for Liquids
Analyzer and Measurement Technology, HVAC / Cooling SystemsBenefits
- Compact design
- ATEX, IECEx and CSA certified
- Ambient temperature range -20 °C to +55 °C (-4 °F to +131 °F)
- Various refrigerating capacities
-
Description
Marking Chiller ATEX: II 2G Ex IIB+H2 T3/T4 Control Unit: on request / auf Anfrage
Ambient Temperature Standard: FKS 0.5-KWS: (other temperature ranges on request)
Certification FKS-KWS CE Declaration: DE, EN,FR
IECEx: Ex 60079-46 IIB+H2 T3/T4 Gb
IECEx (cont.): Ex h IIB+H2 T3/T4 Gb
NEC500: CL I, DIV 2, GP B, C and D
NEC505: Ex px mb de IIB+H2 T3/T4
NEC505 (cont.): AEx px mb de IIB+H2 T3/T4
+5 °C to +40 °C (+41 °F to +104 °F)
High Temperature Option:
+5 °C to +55 °C (41 °F to +131 °F)
Low Temperature Option:
-15 to +45 °C (-4 to +104 °F)
Low and High Temperature Option:
-15 to +55 °C (-4 to 131 °F)
+5 °C to +35 °C (+41 °F to 95 °F)
FKS-KWS ATEX Certificate: EN
FKS-KWS IECEx Certificate: EN
FKS-KWS CSA Certificate: EN
The closed loop chillers consist of an air-cooled high performance condenser combined with an encapsulated compressor. They are suitable for the installation in explosive gas atmospheres defined as Zone 1. The electrical control system is supplied with its own Ex-d housing. Optionally, with an analyzer, the control system can be placed inside the Ex-p housing of the analyzer.
Problems on-site where utilities supplied cooling water is of a lower quality or special requirements of cooling water are needed, closed loop chillers can be applied to meet these applications. The chillers can be supplied with diverse refrigerating capacities which allow the chillers to be used on single analyzers up to complete analyzer houses, peltier elements and heat exchangers. They can be delivered suitable for indoor or outdoor use. Depending on the flow rate required, different pump capacities are also available.
Technical Data
| Cooling capacity at specified coolant temperature (at x ambient temperature) | FKS 0.5-KWS: typical 500 W at -35 °C (-31 °F) FKS 1.4-KWS: typical 1.4 kW at +15 °C (+59 °F) FKS 2.4-KWS: typical 2.4 kW at +10 °C (+50 °F) FKS 4-KWS: typical 4 kW at +10 °C (+50 °F) FKS 6-KWS: typical 6 kW at +10 °C (+50 °F) FKS 10-KWS: typical 10 kW at +10 °C (+50 °F) |
|---|---|
| Refrigerant | R513 or R134a R449a (FKS 0.5-KWS) |
| Coolant | Temper / Water / Glycol (depending on application) |
| Coolant temperature range | FKS 0.5-KWS: -35 °C to +10 °C (-31 °F to +50 °F) FKS 1.4-KWS to FKS 10-KWS: -5 °C to +28 °C (+23 °F to +82 °F) |
| Circulation pump capacity (±10 %) | FKS 0.5-KWS: 400 l/h, 2 to 3 bar FKS 1.4-KWS: 360 l/h, 2 to 4 bar FKS 2.4-KWS: 450 l/h, 2 to 4 bar FKS 4-KWS: 600 l/h, 2 to 4 bar FKS 6-KWS: 1000 l/h, 2 to 3 bar FKS 10-KWS: 1500 l/h, 2 to 3 bar |
| Power consumption | FKS 0.5-KWS: 1.8 kW FKS 1.4-KWS: 1.8 kW FKS 2.4-KWS: 2.3 kW FKS 4-KWS: 3.2 kW FKS 6-KWS: 4.3 kW FKS 10-KWS: 6.5 kW |
| Hose connections | FKS 0.5-KWS to FKS 2.4-KWS: ½ inch NPT FKS 4-KWS to FKS 10-KWS: depending on application |
| Dimensions (HxWxD) and weight | FKS 0.5-KWS: 500 x 960 x 530 mm (150 kg) FKS 1.4-KWS: 500 x 960 x 530 mm (150 kg) FKS 2.4-KWS: 600 x 960 x 530 mm (160 kg) FKS 4-KWS: 1000 x 1100 x 700 mm (260 kg) FKS 6-KWS: 1100 x 1100 x 700 mm (290 kg) FKS 10-KWS: 1200 x 1100 x 700 mm (310 kg) |
| Rated voltage | 110 VAC to 690 VAC 50/60 Hz (depending on model) |
