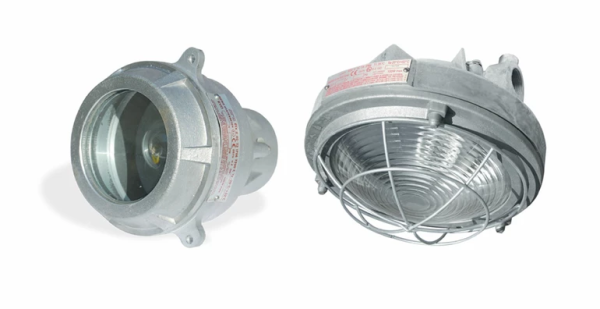

Evo…/evt… Light For Led, Incandescen Or Halogen Lamp

The Type EVO / EVT  wall and ceiling light fitting for potentially explosive atmospheres in Zones 1, 2 as well as 21 and 22 is characterised by its robust design, a high IP protection type and a large ambient temperature range. This light is suitable for use wherever the hardest ambient conditions are to be found, such as in oil and gas production and in the chemicals industry. It offers the ideal solution for illumination both outside and inside industrial installations, for lighting up tunnels, walkways, corridors and storage areas, and for use in areas where space is very restricted.

The light is designed with type of protection “Ex d” and may be used with ordinary incandescent / halogen / and LED lamps with E-27 base. For the electrical connection, two ¾” NPT threaded holes are provided on the light to house the cable glands or blanking plugs, approved for the explosion protected area. Two M6 holes are provided for mounting, and the corresponding mounting brackets are available as accessories on request.

Questionnaires/Requirement Sheets

• DE
• EN

Manuals/Operating Instructions/Guides

• Instruction for use EVO
  • EN-IT
  • EN-RU

  ---

• Instruction for use EVT
  • EN-IT
  • EN-PT
  • EN-RU

Declarations

• EU Declaration of conformity EVO
  • EN-IT

  ---

• EU Declaration of Conformity EVT
  • EN-IT

Data Sheets

• EN
