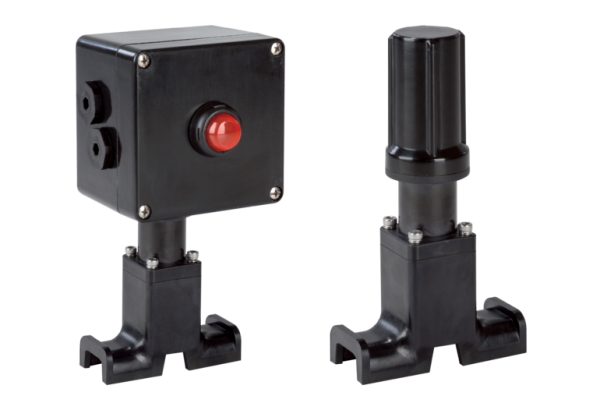

End of Line Light ELL and End of Line Seal ELS
End of Line Light ELL and End of Line Seal ELS
Connections, Splices, Terminations, Heating Components, Heating Components and AccessoriesBenefits
- lndication on heating circuit status
- Quick and easy installation
- On pipe and Off pipe mounts available
- Power and end termination kit included
-
Description
Marking ATEX: II 2G Ex eb 60079-30-1 IIC T6…110°C (T4) Gb IECEX: Ex eb 60079-30-1 IIC T6…110°C (T4) Gb CSA:
Ambient Temperature ELL: -55 °C to +40 °C
Certification
II 2D Ex tb 60079-30-1 IIIC TL80…TL110°C Db
Ex tb 60079-30-1 IIIC TL80…TL110°C Db
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 2, Groups E, F, G
Class III
ELS: -55 °C to +55 °C
ELL End of Line Light
Above insulation end seal kit with integrated LED indication light. Designed to terminate one BARTEC parallel heating cable. One CAK cold applied kit for self-regulating Cables or one HSK heat shrink kit for BPL-AL cable is included in every ELL kit.
ELS End of Line Seal
Above insulation end seal kit, projecting through the thermal insulation and cladding for easy maintenance. Designed to terminate one BARTEC parallel heating cable.
Technical Data
| Nominal Voltage | max. 277 V |
|---|---|
| Nominal Current | max. 32 A |
| Ambient temperaturte | 55 °C to +40 °C |
| Min. Installation temperature | -40 °C |
| Protection Class | IP64 (IEC 60079-0) |
| IP66 (IEC 60529) |
Manuals/Operating Instructions/Guides
-
Installation Instructions ELS-200 – ATEC / IECEx
- EN
-
Installation Instructions ELL-200-E – ATEC / IECEx
- EN
-
Installation Instructions ELL-300-E – ATEC / IECEx
- EN
-
Installation Instructions ELL-200-A – CSA
- EN
-
Installation Instructions ELL-300-A – CSA
- EN
-
Installation Instructions ELL-220-A – CSA
- EN
