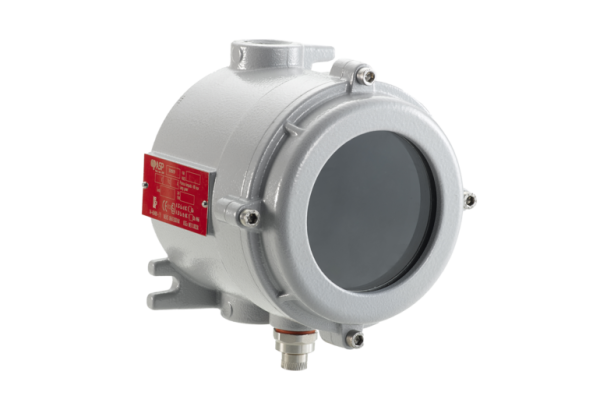

EMH9 Instrument Housing
Command and Signalling Devices, Electrical SystemsBenefits
- IIC
- Aluminium
- Round-shape
- window with transparent tempered glass
- for analogical and digital measuring instruments
-
Description
Marking
ATEX:
(Ex II 2 G) Ex d IIC T6 Gb
(Ex II 2 D) Ex tb IIIC T85°C Db IP66
IECEx:
Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP66
Ambient Temperature
-40 °C to +60 °C as standard
Certification
-
ATEX
- EN
-
IECEx
- EN
Flameproof Ex d Instrument housing BARTEC EMH9 series is designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
The instrument housings are normally used to enclose analogical and digital measuring instruments.
The internal measuring instruments, supplied on request, can be:
– Analog measuring instrument
– Digital measuring instrument
– CCTV cameras and systems
– Twilight relays
Technical Data
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Copper free aluminium light alloy |
| Weight | see data sheet |
| Dimensions | see data sheet |
